WR9QH333T00NAIMR6B
ActiveGlobTek, Inc.

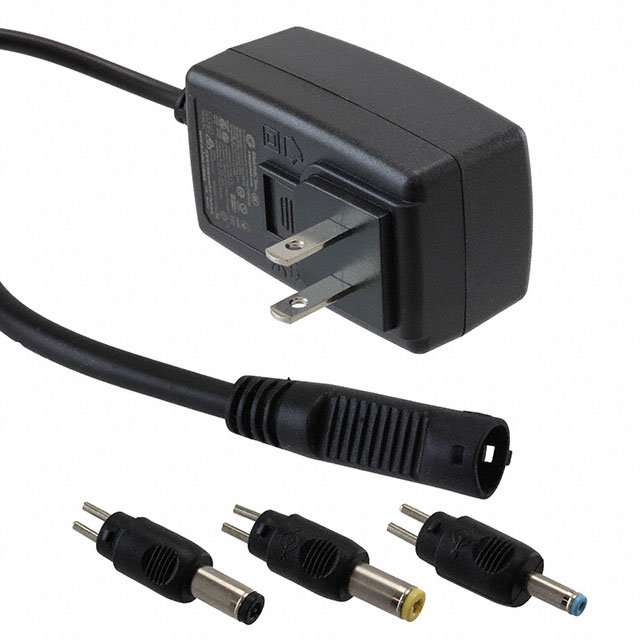

AC/DC WALL MOUNT ADAPTER 18V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR9QH333T00NAIMR6B
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 18V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR9QH333T00NAIMR6B |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | ETL, UL, FCC, UKRSepro, BSI, cETLus, PSE, S-Mark, CB, CE, LPS, CCC, VCCI, EAC |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) | 330 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug Kit, 1.3mm x 3.5mm |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension [x] | 1.71 " |
| Size / Dimension [x] | 43.5 mm |
| Size / Dimension [y] | 74 mm |
| Size / Dimension [y] | 2.91 " |
| Size / Dimension [z] | 36.8 mm |
| Size / Dimension [z] | 1.45 in |
| Standard Number | 1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.73 | |
| 5 | $ 7.42 | |||
| 10 | $ 7.29 | |||
| 25 | $ 7.12 | |||
| 50 | $ 7.00 | |||
| 100 | $ 6.88 | |||
| 250 | $ 6.72 | |||
| 500 | $ 6.60 | |||
Description
General part information
WR9QH333T00NAIMR6B
18V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
