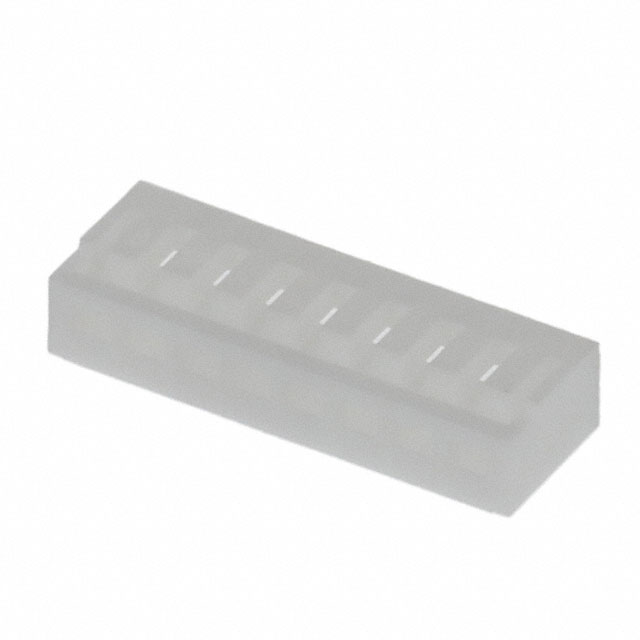

10156614-0800LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 8POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
10156614-0800LF
ActiveAmphenol ICC (FCI)
CONN BOARD-IN HSG 8POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10156614-0800LF |
|---|---|
| Color | Natural |
| Connector Type | Board-In |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Through Hole |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
10156614 Series
| Part | Note | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type | Contact Type | Number of Positions | Connector Type | Insulation Material | Pitch [x] | Pitch [x] | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 9 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 4 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 12 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 10 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 11 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | ||
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 8 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | 16 | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 15 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural | |
Amphenol ICC (FCI) | Contacts Not Included | 1 | -40 °C | 105 ░C | Crimp | Through Hole | Male Pin | 6 | Board-In | Polyamide (PA66) Nylon 6/6 | 0.079 in | 2 mm | Natural |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10156614 Series
8 Rectangular Connectors - Housings Board-In Natural 0.079" (2.00mm)
