1775703
ObsoletePhoenix Contact
CONN BASE SIDE ENTRY SZB32 PG29
1775703
ObsoletePhoenix Contact
CONN BASE SIDE ENTRY SZB32 PG29
Description
General part information
1775703

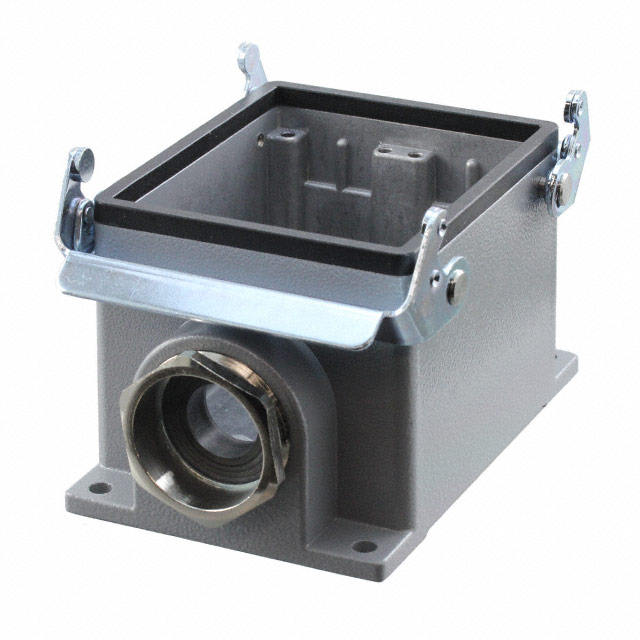

Base - Box Mount Connector Side Entry PG29 B32 IP65 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1775703 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B32 |
| Size / Dimension Height | 2.835 in |
| Size / Dimension Length | 4.882 in |
| Size / Dimension Width | 3.209 in |
| Style | Side Entry |
| Thread Size | PG29 |
