1424487

Active

Phoenix Contact

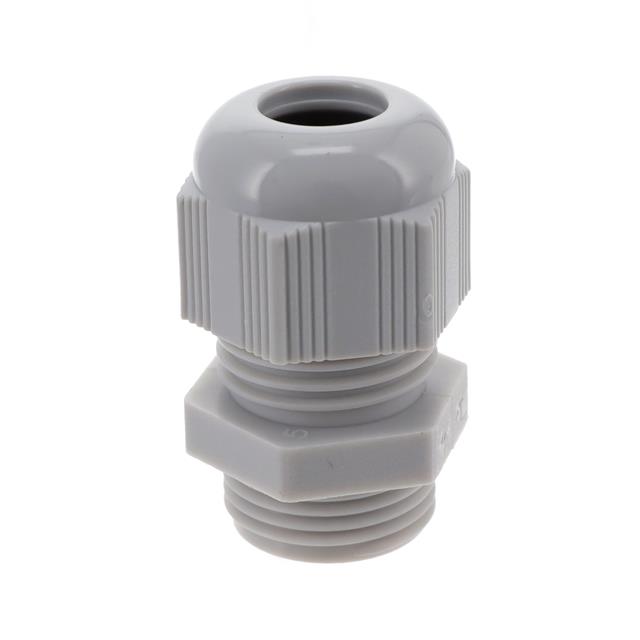

CABLE GLAND 5-10MM PG11 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM PG11 POLYAMID

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424487	G-INS-PG11 Series

Color	Gray	Gray, Black
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof, IP66/IP68
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	10 mm
Outside Cable Diameter (Min) [Min]	5 mm	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in	0.197 in
Thread Length	8 mm	8 mm
Thread Length	0.315 in	0.315 in
Thread Size	PG11	PG11
Type	Cable Gland	Cable Gland

CABLE GLAND 5-10MM PG11 POLYAMID

Part	Thread Size	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Material	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Type
Phoenix Contact 1424487	PG11	8 mm	0.315 in	0.394 "	10 mm	Gray	100 °C	-40 °C	Seal	Polyamide (PA), Nylon	5 mm	0.197 in	IP68 - Dust Tight, Waterproof	Cable Gland
Phoenix Contact 1411142	PG11	8 mm	0.315 in	0.394 "	10 mm	Gray	100 °C	-40 °C	Seal	Polyamide (PA), Nylon	5 mm	0.197 in	IP66/IP68	Cable Gland
Phoenix Contact 1424497	PG11	8 mm	0.315 in	0.394 "	10 mm	Black	100 °C	-40 °C	Seal	Polyamide (PA), Nylon	5 mm	0.197 in	IP68 - Dust Tight, Waterproof	Cable Gland

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon PG11 Gray
