1217097-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 18-22AWG 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217097-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2.29 mm |
| Insulation Diameter [Min] | 0.09 in |
| Length - Overall [x] | 0.67 " |
| Length - Overall [x] | 17.02 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.255 in |
| Tab Length | 6.48 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1217097 Series
CONN QC RCPT 18-22AWG 0.187
| Part | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Mounting Type | Terminal Type | Termination | Tab Width | Tab Width | Insulation | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Contact Material | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217097-1 | 0.032 in | 0.81 mm | 22 AWG | 17.5 AWG | 0.67 " | 17.02 mm | 0.255 in | 6.48 mm | Free Hanging (In-Line) | Standard | Crimp | 4.75 mm | 0.187 in | Non-Insulated | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Brass | Female |
Description
General part information
1217097 Series

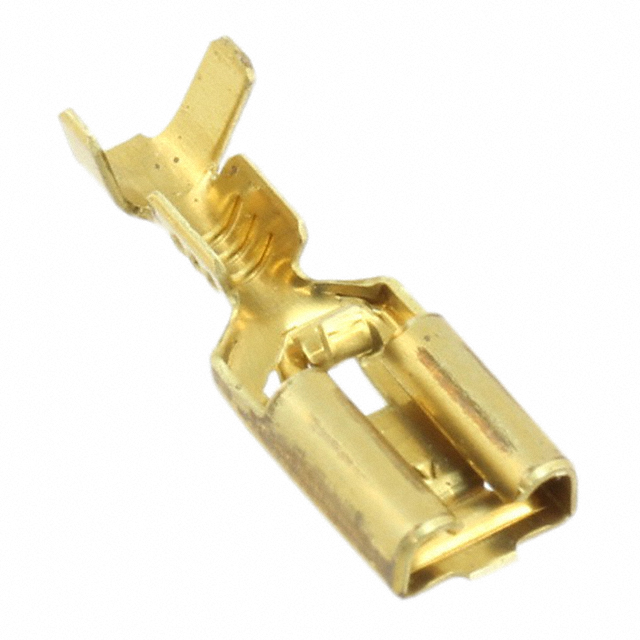

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
