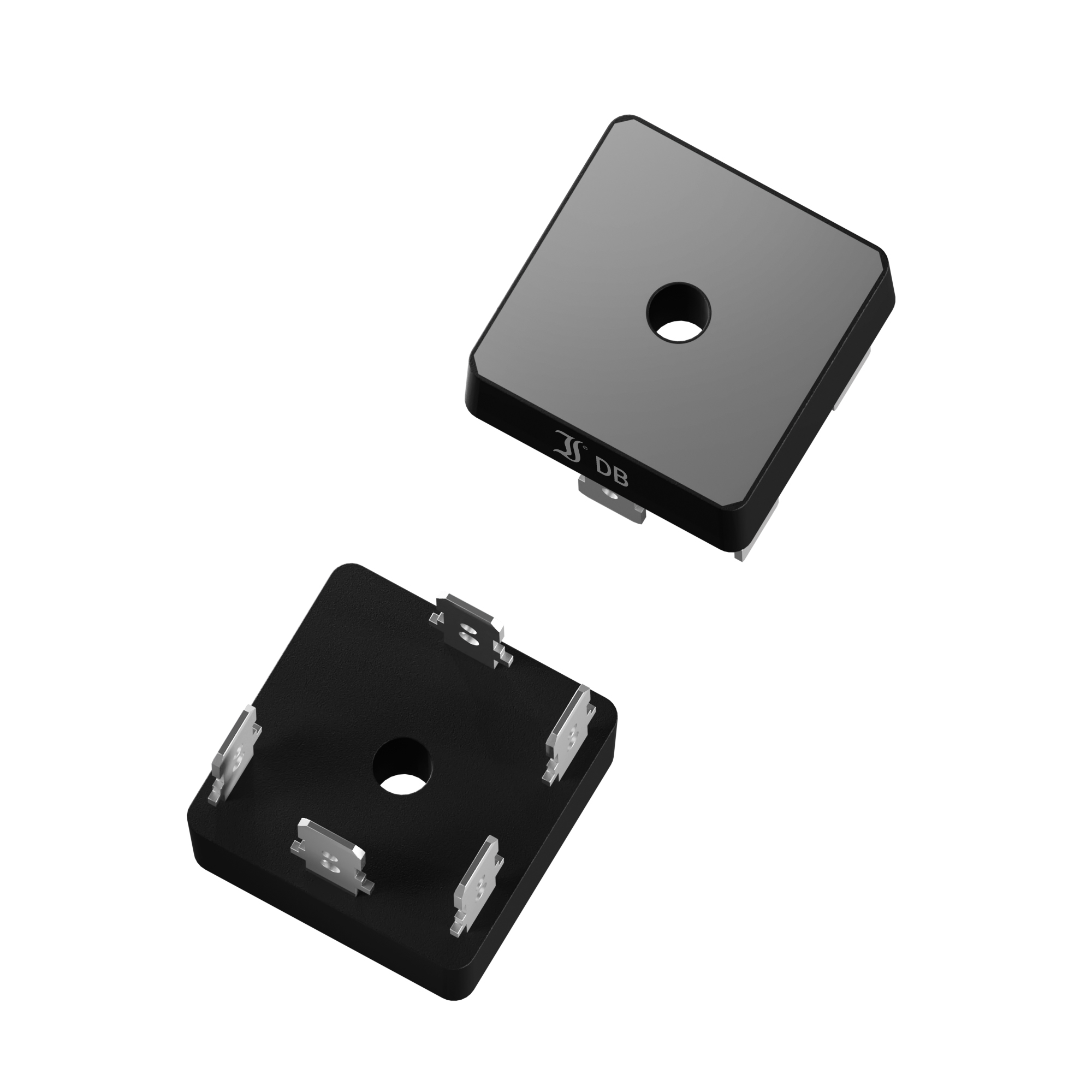

KBPC3504IP
ObsoleteDiotec Semiconductor
BRIDGE RECT 1PHASE 400V 35A PB
KBPC3504IP
ObsoleteDiotec Semiconductor
BRIDGE RECT 1PHASE 400V 35A PB
Description
General part information
KBPC3504IP
Bridge Rectifier Single Phase Standard 400 V Through Hole PB
Technical Specifications
Parameters and characteristics for this part
| Specification | KBPC3504IP |
|---|---|
| Current - Average Rectified (Io) | 35 A |
| Current - Reverse Leakage | 25 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | PB, 4-Square |
| Package Name | PB |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.1 V, 1.1 V |
| Voltage - Peak Reverse (Max) | 400 V |
