SSP-LB24SR24K10
ActiveLumex Opto/Components Inc.

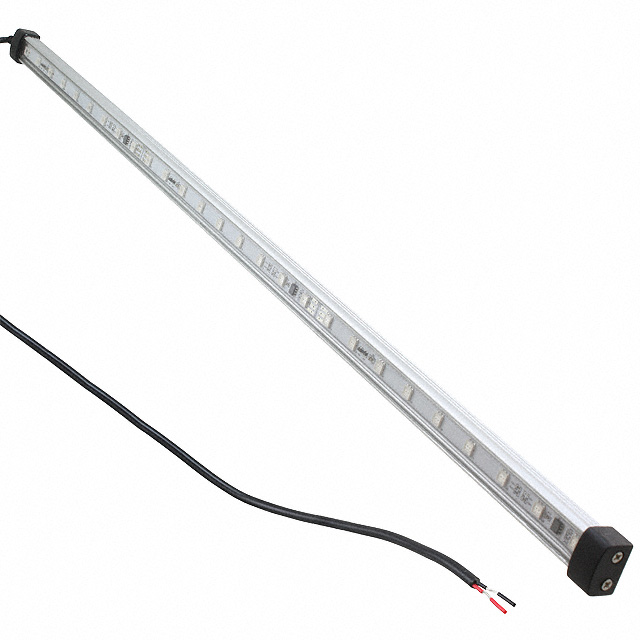

LIGHT BAR 24" RED 24V 120DEG 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSP-LB24SR24K10
ActiveLumex Opto/Components Inc.
LIGHT BAR 24" RED 24V 120DEG 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SSP-LB24SR24K10 | SSP-LB24 Series |
|---|---|---|
| Approval Agency | CE | CE |
| Illumination Color | Red | Blue, Red, White, Warm, Cool |
| Ingress Protection | IP66 | IP66 |
| Length | 61 cm | 61 cm |
| Length | - | 604 mm |
| Length [x] | 24.02 " | 23.78 - 24.02 " |
| Lens Type | Flat, Clear | Flat, Clear |
| Luminous Flux | - | 440 - 600 lm |
| Operating Temperature [Max] | 45 °C | 45 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Power - Rated | 1.5 W | 1.5 - 10 W |
| Profile (W x H) [x] | 22.2 mm | 19.5 - 22.2 mm |
| Profile (W x H) [x] | 0.87 in | 0.77 - 0.87 in |
| Profile (W x H) [y] | 0.59 in | 0.52 - 0.59 in |
| Profile (W x H) [y] | 14.9 mm | 13.3 - 14.9 mm |
| Rated Life | 20000 Hours | 20000 Hours |
| Termination Style | Cable Leads | Cable Leads, Connector |
| Voltage - Supply | 24 VDC | 24 VDC |
SSP-LB24 Series
LIGHT BAR 24" BLU 24V 120DEG 10W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Color | Profile (W x H) [x] | Profile (W x H) [y] | Profile (W x H) [y] | Profile (W x H) [x] | Voltage - Supply | Length | Length [x] | Power - Rated | Approval Agency | Lens Type | Rated Life | Ingress Protection | Termination Style | Luminous Flux | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SSP-LB24USB24K10 | 45 °C | -20 C | Blue | 22.2 mm | 0.59 in | 14.9 mm | 0.87 in | 24 VDC | 61 cm | 24.02 " | 1.6 W | CE | Clear, Flat | 20000 Hours | IP66 | Cable Leads | ||
Lumex Opto/Components Inc. SSP-LB24SR24K10 | 45 °C | -20 C | Red | 22.2 mm | 0.59 in | 14.9 mm | 0.87 in | 24 VDC | 61 cm | 24.02 " | 1.5 W | CE | Clear, Flat | 20000 Hours | IP66 | Cable Leads | ||
Lumex Opto/Components Inc. SSP-LB24MW024K10 | 45 °C | -20 C | Warm, White | 19.5 mm | 0.52 in | 13.3 mm | 0.77 in | 24 VDC | 23.78 " | 10 W | Clear, Flat | 20000 Hours | Connector | 600 lm | 604 mm | |||
Lumex Opto/Components Inc. SSP-LB24UW024K07 | 45 °C | -20 C | Cool, White | 22.2 mm | 0.59 in | 14.9 mm | 0.87 in | 24 VDC | 23.78 " | Clear, Flat | 20000 Hours | Cable Leads | 440 lm | 604 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SSP-LB24 Series
LIGHT BAR 24" RED 24V 120DEG 10W
