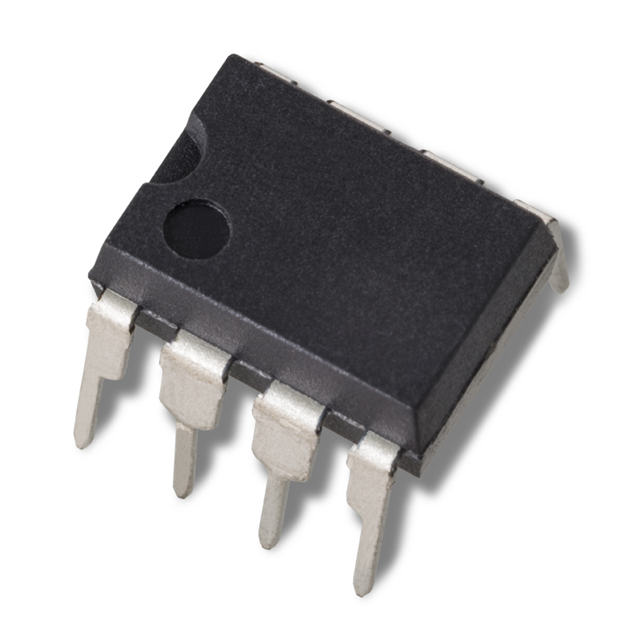

IT131 PDIP 8L ROHS

Active

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Search across all available documentation for this part.

Active

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	IT131 PDIP 8L ROHS

Current - Collector (Ic) (Max) [Max]	10 mA
Current - Collector Cutoff (Max) [Max]	1 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	90 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Power - Max [Max]	500 mW
Supplier Device Package	8-DIP
Transistor Type	2 PNP (Dual)
Voltage - Collector Emitter Breakdown (Max)	45 V

TIGHTLY MATCHED, MONOLITHIC DUAL

Part	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Frequency - Transition	Supplier Device Package	Package / Case	Package / Case	Package / Case	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Current - Collector Cutoff (Max) [Max]
Linear Integrated Systems, Inc. IT131 PDIP 8L ROHS	10 mA	100	2 PNP (Dual)	90 MHz	8-DIP	0.3 in	8-DIP	7.62 mm	500 mW	-55 °C	150 °C	45 V	Through Hole	1 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 PNP (Dual) 45V 10mA 90MHz 500mW Through Hole 8-DIP
