HV-TMP-1

Active

Hirose Electric Co Ltd

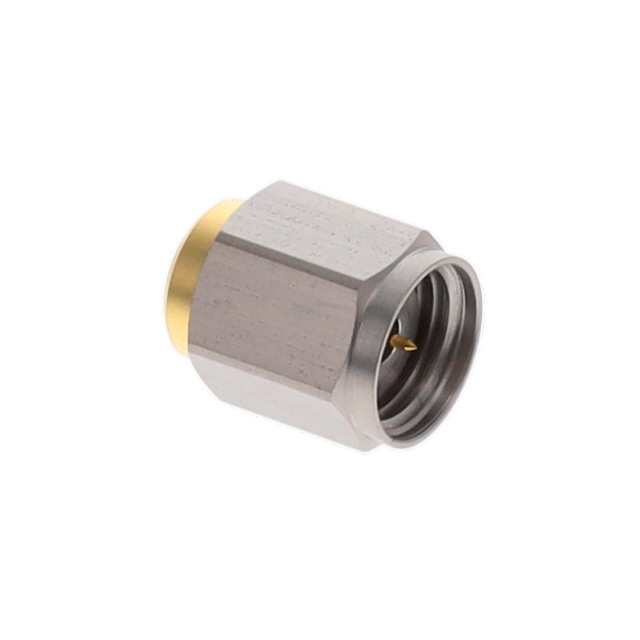

TERMINATOR 1.85MM M 50OHM

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

TERMINATOR 1.85MM M 50OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HV-TMP-1	- Series

	-	-
Accessory Type	-	Guide Socket, Guide Pin
Body Material	Stainless Steel	Stainless Steel
Color	-	Blue
Connector Style	1.85 mm	1.85 - 2.92 mm
Connector Type	Male Pin, Plug	Receptacle, Male Pin, Plug
Contact Finish	Gold	Gold
Contact Material	Brass	Brass
Contact Termination	-	Crimp, Solder
Contact Type	-	Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	-	Flange
For Use With/Related Products	-	EX Series, EM Series
Frequency - Max [Max]	65 GHz	10 - 65 GHz
Impedance	50 Ohms	50 Ohms
Insulation Material	-	Resin
Mounting Type	Free Hanging, Cap	Free Hanging (In-Line), Surface Mount, Free Hanging, Cap
Note	-	Contacts Not Included
Number of Ports	-	1
Number of Positions	-	12 - 45
Number of Positions	-	16
Number of Rows	-	3
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shield Termination	-	Solder

CONNECTOR

Part	Mounting Type	Connector Type	Contact Termination	Contact Type	Note	Features	Number of Rows	Number of Positions	Insulation Material	Color	Number of Positions	Accessory Type	For Use With/Related Products	Impedance	Connector Style	Body Material	Contact Finish	Dielectric Material	Contact Material	Frequency - Max [Max]
Hirose Electric Co Ltd NJ-MCXJ-WBPA
Hirose Electric Co Ltd 3CV-P3(40)
Hirose Electric Co Ltd 1.0/2.3-P-HMC085
Hirose Electric Co Ltd SC-1645	Free Hanging (In-Line)	Receptacle	Crimp	Female Socket	Contacts Not Included	Flange	3	45	Resin	Blue
Hirose Electric Co Ltd SC-1616	Free Hanging (In-Line)	Receptacle	Crimp	Female Socket	Contacts Not Included	Flange	3		Resin	Blue	16
Hirose Electric Co Ltd EX-SG												Guide Socket	EX Series
Hirose Electric Co Ltd M-P-10-1(40)
Hirose Electric Co Ltd QT-11
Hirose Electric Co Ltd M-P-3-1(40)
Hirose Electric Co Ltd HK-TMP	Free Hanging (In-Line)	Male Pin, Plug												50 Ohms	2.92 mm	Stainless Steel	Gold	Polytetrafluoroethylene (PTFE)	Brass	40 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminator Coax Connector Plug, Male Pin 1.85mm 50 Ohms
