EN3P8MPX

Active

Switchcraft Inc.

CONN RCPT MALE 8POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

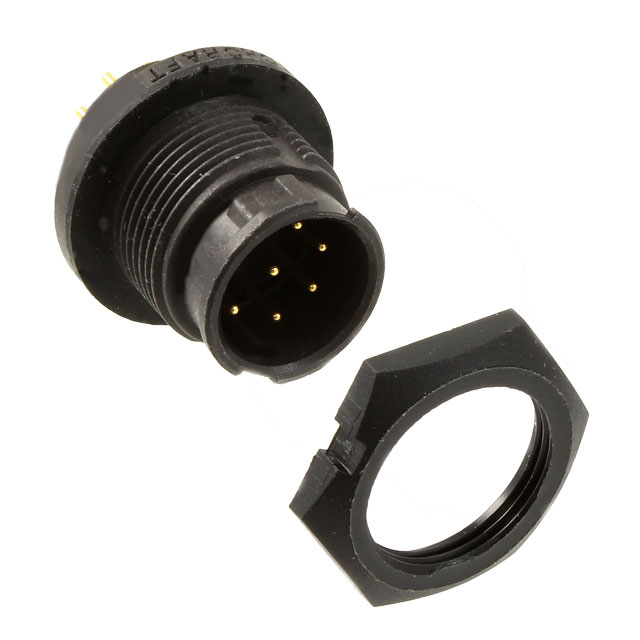

EN3P8MPX

Active

Switchcraft Inc.

CONN RCPT MALE 8POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P8MPX	EN3P8M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6.5 A	4 - 6.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	8	8
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Crimp, Circuit Board, Solder, Solder
Voltage Rating	250 VAC	250 VAC

EN3P8M Series

CONN RCPT MALE 8POS SOLDER CUP

Part	Current Rating (Amps)	Insert Material	Connector Type	Mounting Feature	Color	Voltage Rating	Number of Positions	Fastening Type	Shielding	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Material Flammability Rating	Ingress Protection	Contact Finish - Mating	Primary Material	Orientation	Termination	Mounting Type
Switchcraft Inc. EN3P8MKX	6.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed
Switchcraft Inc. EN3P8MCKX	6.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Crimp
Switchcraft Inc. EN3P8MRAPCBN	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P8MRAPCBW	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P8MX	6.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed
Switchcraft Inc. EN3P8MCX	6.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Crimp
Switchcraft Inc. EN3P8MRAPCX	4 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P8MPX	6.5 A	Elastomer	Male Pins, Receptacle	Bulkhead - Front Side Nut	Black	250 VAC	8	Bayonet Lock	Unshielded	General Purpose, Instrumentation, Marine, Medical	65 °C	-40 °C	Copper Alloy	UL94 V-0	IP66/IP68	Gold	Plastic	Keyed	Solder	Panel Mount, Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.35
		10	$ 9.51
		25	$ 8.60
		50	$ 8.53

Description

General part information

EN3P8M Series

8 Position Circular Connector Receptacle, Male Pins Solder
