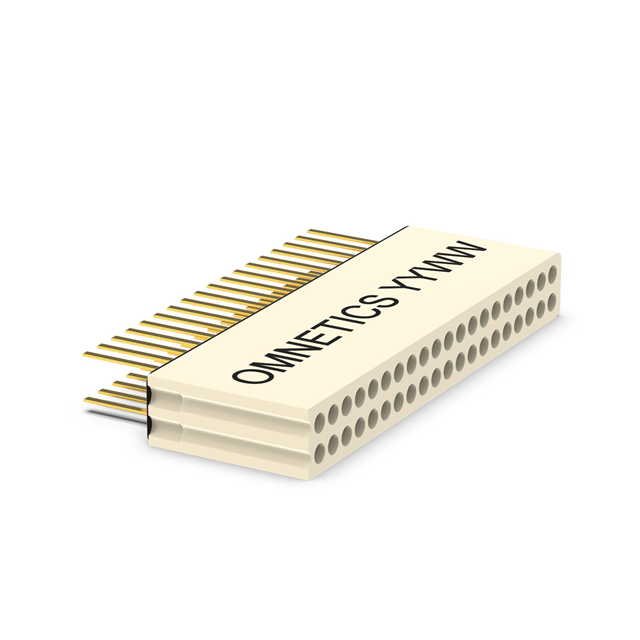

A79022-001

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

36 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79022-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

36 POSITION DUAL ROW MALE NANO-M

Part	Termination	Style	Fastening Type	Insulation Color	Connector Type	Shrouding	Contact Shape	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Rows	Contact Type	Contact Length - Post	Contact Length - Post
Omnetics A79022-001	Solder	Board to Cable/Wire	Push-Pull	Natural	Header	Shrouded - 4 Wall	Circular	Gold	Through Hole	1.27 µm	50 µin	-55 °C	125 °C	Guide Pin	Beryllium Copper	36	All	0.025 in	0.64 mm	Thermoplastic	0.03 in	0.76 mm	0.173 in	4.4 mm	2	Male Pin	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 36 position 0.025" (0.64mm)
