Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSX922IQ2T | TSX922 Series |
|---|---|---|
| - | - | |
| Amplifier Type | CMOS | CMOS |
| Current - Input Bias | 10 pA | 10 pA |
| Current - Output / Channel [custom] | 74 mA | 74 mA |
| Current - Supply | 2.8 mA | 2.8 mA |
| Gain Bandwidth Product | 10 MHz | 10 MHz |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |

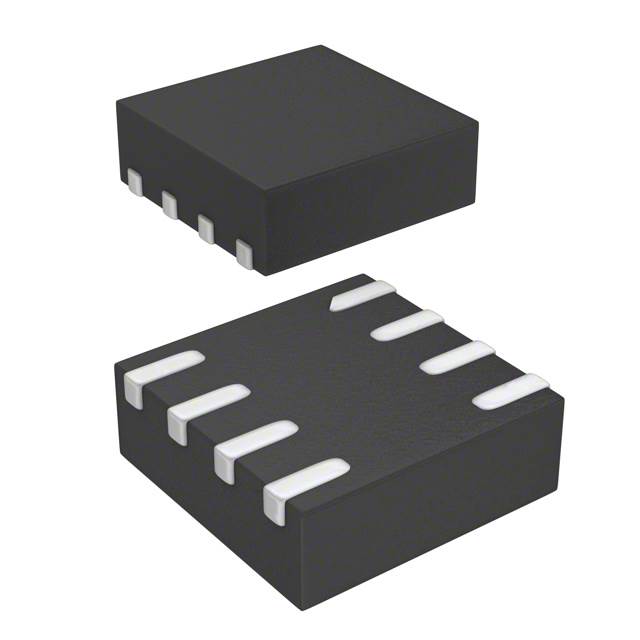

| Package / Case | 8-WFDFN | 8-SOIC, 8-WFDFN |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Qualification | AEC-Q100 | AEC-Q100 |
| Slew Rate | 17 V/µs | 17 V/µs |
| Supplier Device Package | 8-DFN (2x2) | 8-SOIC, 8-DFN (2x2) |
| Voltage - Input Offset | 4 mV | 4 mV |
| Voltage - Supply Span (Max) [Max] | 16 V | 16 V |
| Voltage - Supply Span (Min) [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.76 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.17 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.76 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.17 | |||
| 100 | $ 1.04 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.95 | |||
| 1000 | $ 0.92 | |||
| Tape & Reel (TR) | 3000 | $ 0.88 | ||
| 6000 | $ 0.86 | |||
| 9000 | $ 0.85 | |||
TSX922 Series
Large bandwidth (10MHz), rail-to-rail 16V CMOS Op-Amps, dual
| Part | Voltage - Supply Span (Min) [Min] | Current - Supply | Supplier Device Package | Number of Circuits | Mounting Type | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Amplifier Type | Gain Bandwidth Product | Current - Output / Channel [custom] | Slew Rate | Current - Input Bias | Package / Case | Package / Case [y] | Package / Case [x] | Output Type | Voltage - Supply Span (Max) [Max] | Qualification | Voltage - Input Offset |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSX922IDT | ||||||||||||||||||||
STMicroelectronics TSX922IQ2T | ||||||||||||||||||||
STMicroelectronics TSX922IDT | ||||||||||||||||||||
STMicroelectronics TSX922IYST | ||||||||||||||||||||
STMicroelectronics TSX922IYDT | 4 V | 2.8 mA | 8-SOIC | 2 | Surface Mount | Automotive | 125 °C | -40 °C | CMOS | 10 MHz | 74 mA | 17 V/µs | 10 pA | 8-SOIC | 3.9 mm | 0.154 in | Rail-to-Rail | 16 V | AEC-Q100 | |
STMicroelectronics TSX922IQ2T | ||||||||||||||||||||
STMicroelectronics TSX922IST | ||||||||||||||||||||
STMicroelectronics TSX922IST | ||||||||||||||||||||
STMicroelectronics TSX922IYDT | ||||||||||||||||||||
STMicroelectronics TSX922IST | ||||||||||||||||||||
STMicroelectronics TSX922IYDT | ||||||||||||||||||||
STMicroelectronics TSX922IST | ||||||||||||||||||||
STMicroelectronics TSX922IQ2T | 4 V | 2.8 mA | 8-DFN (2x2) | 2 | Surface Mount | Automotive | 125 °C | -40 °C | CMOS | 10 MHz | 74 mA | 17 V/µs | 10 pA | 8-WFDFN | Rail-to-Rail | 16 V | AEC-Q100 | 4 mV |
Description
General part information
TSX922 Series
The TSX92x single and dual operational amplifiers (op amps) offer excellent AC characteristics such as 10 MHz gain bandwidth, 17 V/ms slew rate, and 0.0003 % THD+N. These features make the TSX92x family particularly well-adapted for communications, I/V amplifiers for ADCs, and active filtering applications.
Their rail-to-rail input and output capability, while operating on a wide supply voltage range of 4 V to 16 V, allows these devices to be used in a wide range of applications. Automotive qualification is available as these devices can be used in this market segment.
Shutdown mode is available on the single (TSX920) and dual (TSX923) versions enabling an important current consumption reduction while this function is active.
