134-1000-038
ActiveCinch Connectivity Solutions Johnson
ADAPTER ASSEMBLY, 2.4MM FEMALE T
Deep-Dive with AI
Search across all available documentation for this part.
134-1000-038
ActiveCinch Connectivity Solutions Johnson
ADAPTER ASSEMBLY, 2.4MM FEMALE T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 134-1000-038 |
|---|---|
| Adapter Series | 2.4 mm |
| Adapter Series | SMP3 |
| Adapter Type | Plug to Jack |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMP3 Plug, Male Pin |
| Convert To (Adapter End) | 2.4 mm |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500, 100 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 321.94 | |
| 10 | $ 298.33 | |||
| 25 | $ 287.60 | |||
Description
General part information
134-1000-038

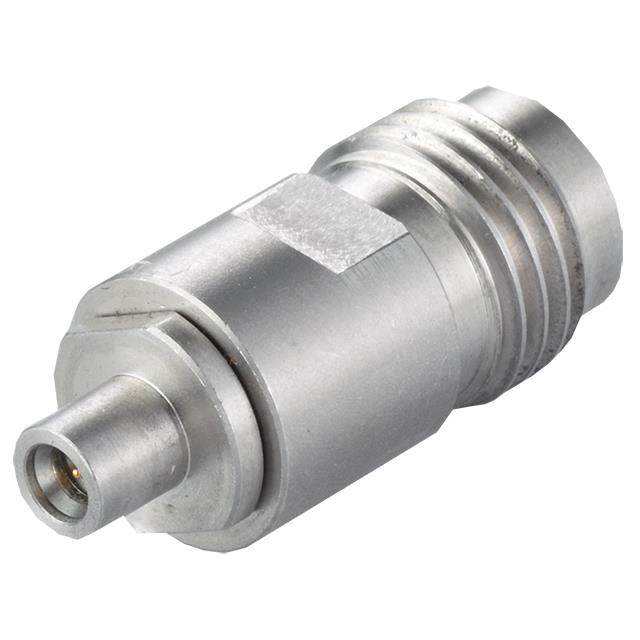

Adapter Coaxial Connector SMP3 Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
