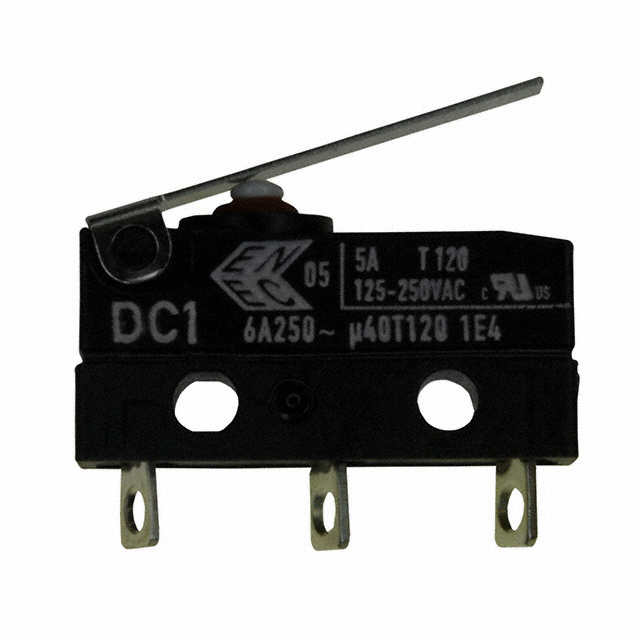

DC1C-A1LB
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DC1C-A1LB
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC1C-A1LB |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 1 A, 5 A |
| Differential Travel | 0.5 mm |
| Differential Travel | 0.02 in |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 82 gf |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 1.5 mm |
| Overtravel | 0.06 " |
| Pretravel | 4.5 mm |
| Pretravel | 0.178 in |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1120 | $ 3.79 | |
Description
General part information
DC1C-A1LB
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
