Description
General part information
09180647001900

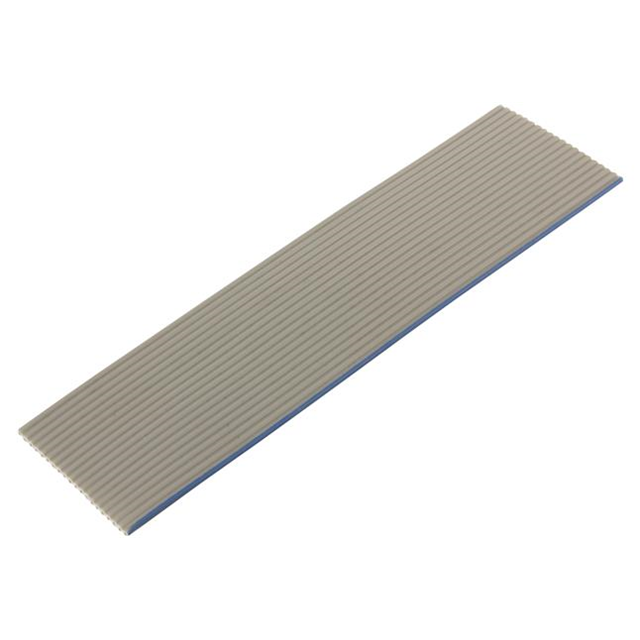

Flat Ribbon Cable Gray 64 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 09180647001900 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Tinned, Copper |
| Conductor Strand | 7 Strands / 0.0035" |
| First Conductor Mark | Blue |
| Insulation Resistance | 20 MOhms |
| Jacket (Insulation) Material | Polyolefin (PO) |
| Jacket Color | Gray |
| Length | 100 ft |
| Number of Conductors | 64 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.05 in |
| Ribbon Thickness | 0.037 in |
| Ribbon Width | 3.187 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
