45-290J.4F00.111
ActiveEAO

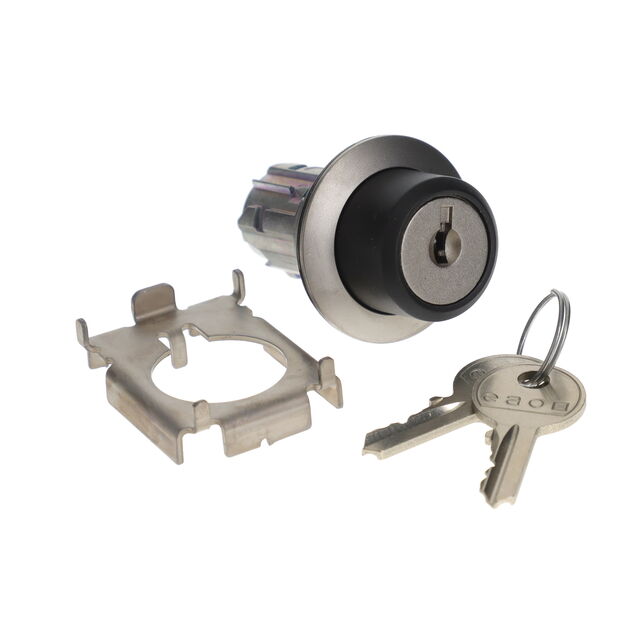

CONFIG SW BODY KEYLOCK NON-ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45-290J.4F00.111
ActiveEAO
CONFIG SW BODY KEYLOCK NON-ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45-290J.4F00.111 | 45-290J Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 45, EAO | 45, EAO |
| Actuator Type | Keylock | Keylock |
| Illumination | Non-Illuminated | Non-Illuminated |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Contact Block(s) | Contact Block(s) |
| Type | Maintained | Maintained |
45-290J Series
CONFIG SW BODY KEYLOCK NON-ILLUM
| Part | Illumination | Actuator Type | (Select First, Then Apply Filters) Compatible Series | Panel Cutout Dimensions | Type | Requires |
|---|---|---|---|---|---|---|
Non-Illuminated | Keylock | 45, EAO | 30.5 mm | Maintained | Contact Block(s) | |
Non-Illuminated | Keylock | 45, EAO | 22.3 mm | Maintained | Contact Block(s) | |
Non-Illuminated | Keylock | 45, EAO | 22.3 mm | Maintained | Contact Block(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 105.54 | |
| 10 | $ 94.98 | |||
| 25 | $ 91.26 | |||
| 50 | $ 85.05 | |||
| 100 | $ 76.83 | |||
Description
General part information
45-290J Series
Configurable Switch Body Keylock Non-Illuminated
