Description
General part information

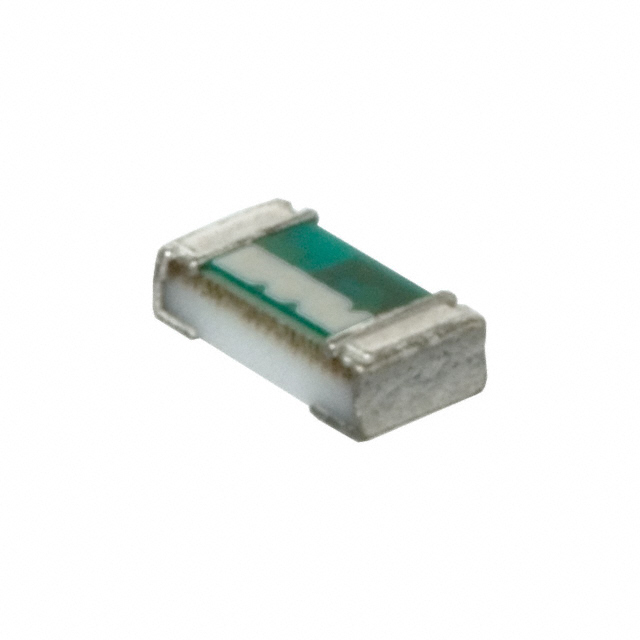

HPL1005-1N8
1.8 nH Unshielded Thin Film Inductor 1 A 140mOhm Max 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HPL1005-1N8 |
|---|---|
| Current Rating | 1 A |
| DC Resistance (DCR) (Max) | 140 mOhm |
| Frequency - Self Resonant | 7 GHz |
| Height - Seated (Max) | 0.013 in |
| Inductance | 1.8 nH |
| Inductance Frequency - Test | 300 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 (1005 Metric) |
| Q | 15 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Tolerance | 0.2 nH |
| Type | Thin Film |
