General part information

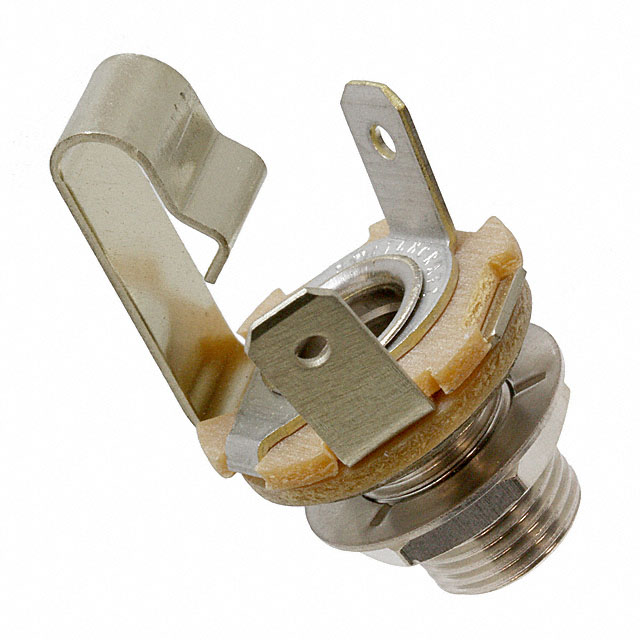

Phone Connectors LITTLE JAX W/PC TERM
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | FAL11 | Littel-Jax Series |
|---|---|---|
| Actual Diameter [diameter] | 0.25 in | 0.25 in |
| Actual Diameter [diameter] | 6.35 mm | 6.35 mm |
| Body Color | Silver | Silver |
| Body Material | Copper Alloy | Copper Alloy |
| Connector Type | Phone Jack | Phone Jack |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Nickel | Nickel |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Thread Lock, Mounting Hardware | Thread Lock, Mounting Hardware |
| Gender | Female | Female |
| Includes | Connector, Washer, Nut | Connector, Washer, Nut |
| Internal Switch(s) | False | False |
| Internal Switch(s) | - | Single Switch |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions/Contacts | - | 2 - 3 Conductors |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Panel Hole Size | 0.375 in | 0.375 in |
| Panel Hole Size | 9.52 mm | 9.52 mm |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Mono | Mono |
| Termination | Solder Eyelet(s) | Solder Eyelet(s), Solder |
| Thread Size | 3/8"-32 | 3/8"-32 |
| Voltage - Rated | 25 VDC | 25 VDC |
Phone Connectors LITTLE JAX W/PC TERM
| Part | Current Rating (Amps) | Voltage - Rated | Body Material | Internal Switch(s) | Gender | Signal Lines | Panel Hole Size | Panel Hole Size | Features | Actual Diameter [diameter] | Actual Diameter [diameter] | Termination | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Contact Material - Plating [custom] | Includes | Body Color | Connector Type | Contact Material | Shielding | Thread Size | Mounting Type | Number of Positions/Contacts | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. FAL11 | 1 A | 25 VDC | Copper Alloy | Female | Mono | 0.375 in | 9.52 mm | Mounting Hardware, Thread Lock | 0.25 in | 6.35 mm | Solder Eyelet(s) | 2 | 2 | Nickel | Connector, Nut, Washer | Silver | Phone Jack | Copper Alloy | Unshielded | 3/8"-32 | ||||
Switchcraft Inc. PC12A | 1 A | 25 VDC | Copper Alloy | Female | Mono | 0.375 in | 9.52 mm | Mounting Hardware, Thread Lock | 0.25 in | 6.35 mm | Solder | Nickel | Connector, Nut, Washer | Silver | Phone Jack | Copper Alloy | Unshielded | 3/8"-32 | Panel Mount, Through Hole | 2 Conductors, 3 Conductors | Single Switch |
