HM-PWR-HDR-10-LR
Active3M

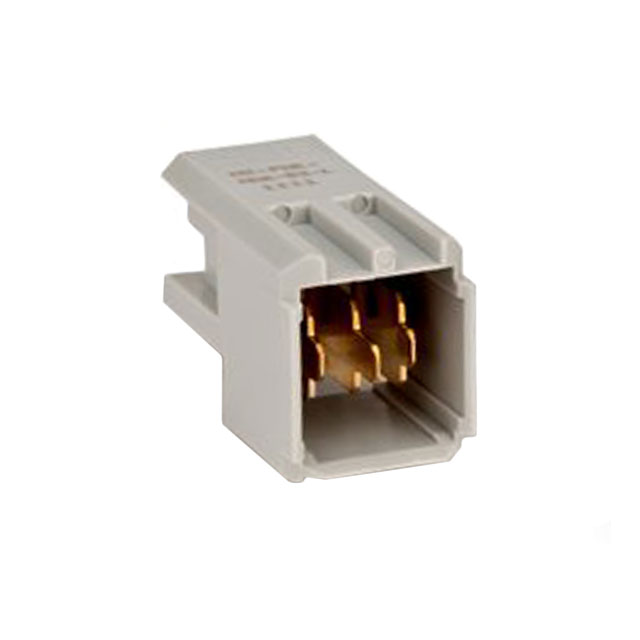

CONN HEADER BLADE PWR 3P EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM-PWR-HDR-10-LR
Active3M
CONN HEADER BLADE PWR 3P EDGE MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HM-PWR-HDR-10-LR | HM-PWR-H Series |
|---|---|---|
| Connector Style | Blade Power | Blade Power |
| Connector Type | Male Blades, Header | Male Blades, Header |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 3 Áin | 3 Áin |
| Contact Finish Thickness | 0.076 Ám | 0.076 Ám |
| Contact Layout, Typical | 3 Power | 3 Power |
| Features | Board Guide | Board Guide |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | Press-Fit | Press-Fit |
HM-PWR-H Series
CONN HEADER BLADE PWR 3P EDGE MT
| Part | Termination | Contact Finish | Number of Rows | Number of Positions Loaded | Connector Type | Contact Layout, Typical | Material Flammability Rating | Features | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Press-Fit | Gold | 1 | All | Header, Male Blades | 3 Power | UL94 V-0 | Board Guide | Blade Power | -55 °C | 125 °C | 3 Áin | 0.076 Ám | Board Edge, Right Angle, Through Hole | |
Press-Fit | Gold | 1 | All | Header, Male Blades | 3 Power | UL94 V-0 | Board Guide | Blade Power | -55 °C | 125 °C | 3 Áin | 0.076 Ám | Board Edge, Right Angle, Through Hole | |
Press-Fit | Gold | 1 | All | Header, Male Blades | 3 Power | UL94 V-0 | Board Guide | Blade Power | -55 °C | 125 °C | 3 Áin | 0.076 Ám | Board Edge, Right Angle, Through Hole | |
Press-Fit | Gold | 1 | All | Header, Male Blades | 3 Power | UL94 V-0 | Board Guide | Blade Power | -55 °C | 125 °C | 3 Áin | 0.076 Ám | Board Edge, Right Angle, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HM-PWR-H Series
3 Connector Header, Male Blades Board Edge, Through Hole, Right Angle Blade Power
