1747/4C SL005

Active

ALPHA WIRE

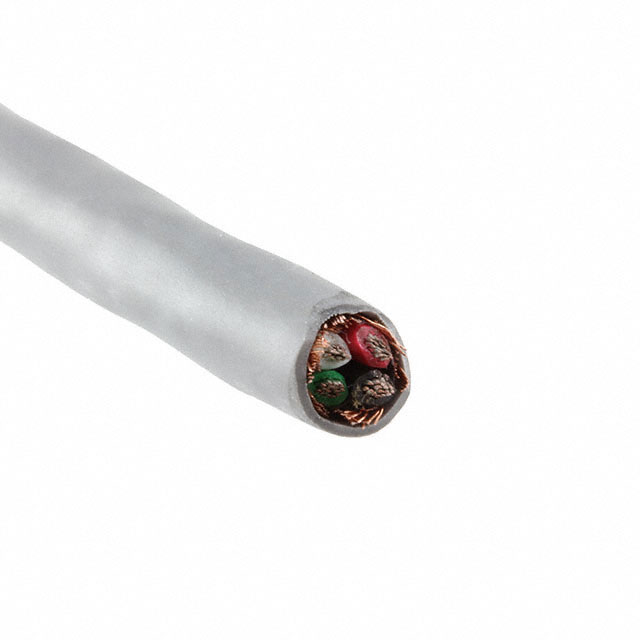

CABLE 4CON 18AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4CON 18AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1747/4C SL005	1747/4C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.256 in	0.256 in
Jacket (Insulation) Diameter [diameter]	6.5 mm	6.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 ft
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	75 %	75 %
Shield Material	Copper, Bare	Copper, Bare
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

CABLE 4CON 18AWG SLATE SHLD 100'

Part	Length [x]	Length [x]	Shield Type	Voltage	Conductor Insulation	Shield Coverage	Number of Conductors	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Length	Length
ALPHA WIRE 1747/4C SL005	30.5 m	100 ft	Braid	300 V	Poly-Vinyl Chloride (PVC)	75 %	4	Copper, Bare	16	30 AWG	Slate	Poly-Vinyl Chloride (PVC)	Communication, Control	0.02 in	0.508 mm	18 AWG	0.256 in	6.5 mm	-20 C	80 C	Multi-Conductor	Copper, Tinned
ALPHA WIRE 1747/4C SL001			Braid	300 V	Poly-Vinyl Chloride (PVC)	75 %	4	Copper, Bare	16	30 AWG	Slate	Poly-Vinyl Chloride (PVC)	Communication, Control	0.02 in	0.508 mm	18 AWG	0.256 in	6.5 mm	-20 C	80 C	Multi-Conductor	Copper, Tinned	1000 ft	304.8 m
ALPHA WIRE 1747/4C SL002	152.4 m	500 '	Braid	300 V	Poly-Vinyl Chloride (PVC)	75 %	4	Copper, Bare	16	30 AWG	Slate	Poly-Vinyl Chloride (PVC)	Communication, Control	0.02 in	0.508 mm	18 AWG	0.256 in	6.5 mm	-20 C	80 C	Multi-Conductor	Copper, Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 18 AWG Braid 100.0' (30.5m)
