2322265

Active

Phoenix Contact

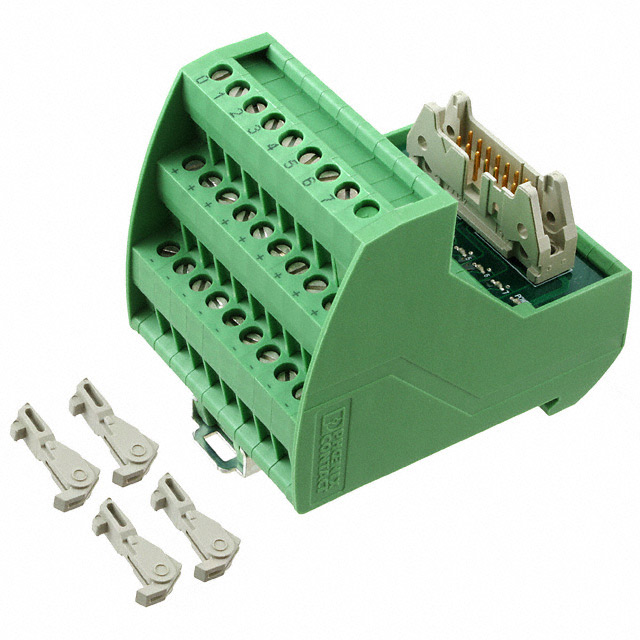

TERMINAL BLOCK INTERFACE MODULES VIP3/FLK14/8/LED/PLC

Search across all available documentation for this part.

Active

Phoenix Contact

TERMINAL BLOCK INTERFACE MODULES VIP3/FLK14/8/LED/PLC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Interface Modules VIP3/FLK14/8/LED/PLC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2322265	VIP-3 Series

Control Side Cable Retainer	Latches	Jackscrew Socket, Latches
Control Side Connection	-	D-Sub, Female, D-Sub, Male
Control Side Connection [custom]	Male	Male
Control Side Connection [custom]	Rectangular	Rectangular
Current Rating (Per Contact)	1 A	1 - 2.5 A
Features	-	LED
Length	52.3 mm	52.3 - 128.2 mm
Length	2.059 in	2.059 - 5.047 in
Operating Temperature [Max]	50 °C	50 - 60 °C
Operating Temperature [Min]	-20 C	-20 C
Positions / Poles	14	14 - 50
Process Side Connection	Terminal Blocks - Screw Connection	Terminal Blocks - Screw Connection
Voltage - Rated	-	24 - 125 V
Width	69.01 mm	65.5 - 69.01 mm
Width	2.717 in	2.717 in
Width	-	2.579 in
Width	-	68.8 mm
Width	-	2.709 in
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Terminal Block Interface Modules VIP3/FLK14/8/LED/PLC

Part	Wire Gauge [Min]	Wire Gauge [Max]	Voltage - Rated	Current Rating (Per Contact)	Positions / Poles	Operating Temperature [Max]	Operating Temperature [Min]	Control Side Cable Retainer	Process Side Connection	Control Side Connection	Width	Width [y]	Width [x]	Width [x]	Control Side Connection [custom]	Control Side Connection [custom]	Length	Length	Features	Width
Phoenix Contact 2322401	12 AWG	24 AWG	125 V	1 A	15	50 °C	-20 C	Jackscrew Socket	Terminal Blocks - Screw Connection	D-Sub, Female	65.5 mm	2.579 in
Phoenix Contact 2908497	12 AWG	24 AWG	60 VAC/DC	1 A	50	60 °C	-20 C	Latches	Terminal Blocks - Screw Connection				68.8 mm	2.709 in	Male	Rectangular	5.047 in	128.2 mm
Phoenix Contact 2322171	12 AWG	24 AWG	24 VDC	2.5 A	37	50 °C	-20 C	Jackscrew Socket	Terminal Blocks - Screw Connection	D-Sub, Male	69.01 mm						2.862 in	72.69 mm	LED	2.717 in
Phoenix Contact 2322265	12 AWG	24 AWG		1 A	14	50 °C	-20 C	Latches	Terminal Blocks - Screw Connection		69.01 mm				Male	Rectangular	2.059 in	52.3 mm		2.717 in
