Description
General part information

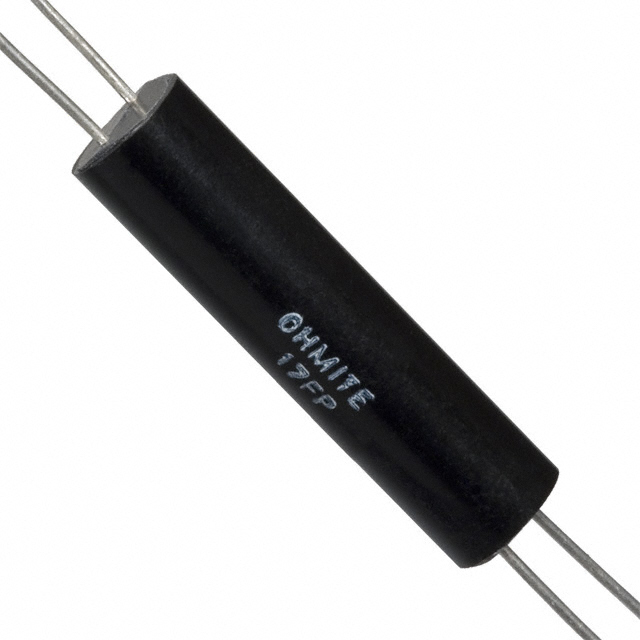

17FPR090E
90 mOhms ±1% 7W Through Hole Resistor Axial Current Sense, Non-Inductive Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | 17FPR090E |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Non-Inductive |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 7 W |
| Resistance | 0.09 Ohms |
| Size / Dimension Diameter | 0.375 in |
| Size / Dimension Length | 1.5 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
