Description
General part information

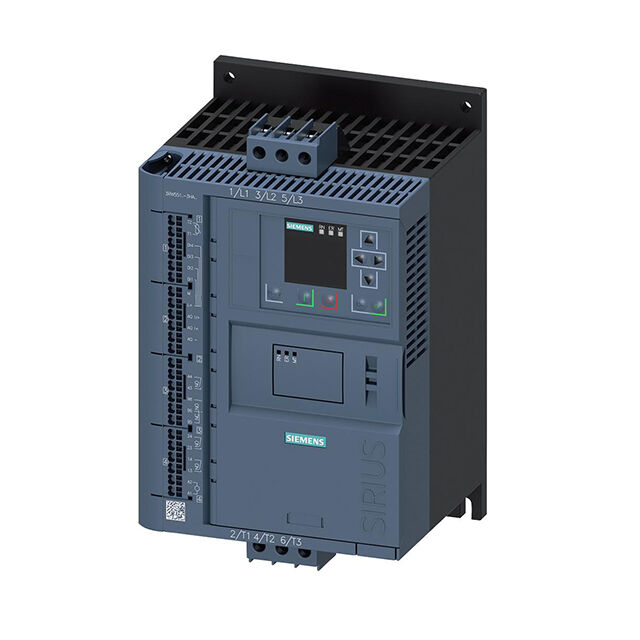

3RW55133HA14
Soft Start / Stop 110 ~ 250VAC Supply 13A 200 ~ 480V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RW55133HA14 |
|---|---|
| Control / Drive Type | Soft Start, Stop |
| Current - Output | 13 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Type | Module |
| Voltage - Load (Max) | 480 V |
| Voltage - Load (Min) | 200 V |
| Voltage - Supply (Maximum) | 250 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
| Wattage - Load | 11000 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
