MBC180-1024L

Active

Bel Power Solutions

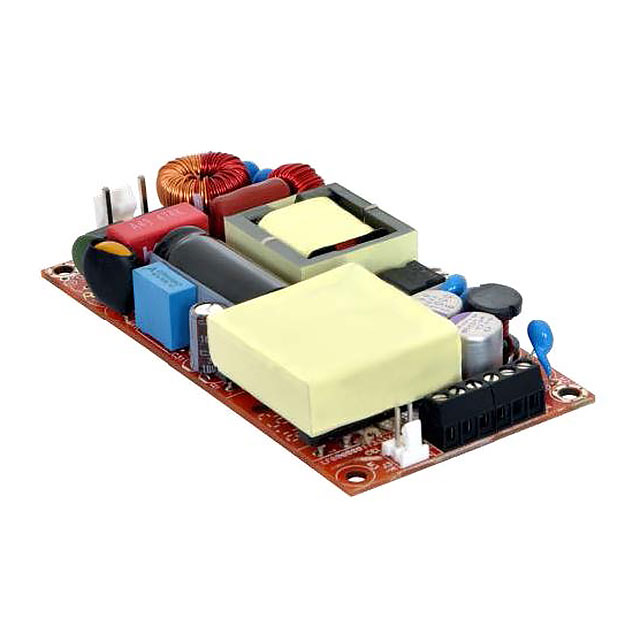

AC/DC CONVERTER 24V 120/180W

Deep-Dive with AI

Search across all available documentation for this part.

MBC180-1024L

Active

Bel Power Solutions

AC/DC CONVERTER 24V 120/180W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 121.78
		5	$ 118.03
		24	$ 114.29

Description

General part information

MBC180 Series

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBC180-1024L	MBC180 Series

Applications	Medical	Medical
Approval Agency	CE	CE
Current - Output 1	5 A	2.07 - 10 A
Efficiency	90 %	88 - 92 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	120 W, 180 W	120 - 180 W
Size / Dimension	-	19 mm
Size / Dimension	-	76.2 mm
Size / Dimension [x]	4 in	4 - 5 in
Size / Dimension [x]	101.6 mm	101.6 - 127 mm
Size / Dimension [y]	2 in	2 - 3 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	19.1 mm	19.1 mm
Size / Dimension [z]	0.75 in	0.75 in
Type	Open Frame	Open Frame
Voltage - Input	-	264 VAC
Voltage - Input	-	80 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	12 - 48 V

MBC180 Series

AC/DC CONVERTER 12V 120/180W

Part	Current - Output 1	Voltage - Output 1	Approval Agency	Applications	Voltage - Isolation	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Features	Efficiency	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]
Bel Power Solutions MBC180-1012L	10 A	12 V	CE	Medical	4000 V	1	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	88 %	Chassis Mount	Open Frame
Bel Power Solutions MBC180-1058L	2.07 A		CE	Medical	4000 V	1	3 "	5 in	127 mm			0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	92 %	Chassis Mount	Open Frame	19 mm	76.2 mm	264 VAC	80 VAC
Bel Power Solutions MBC180-1048L	2.5 A	48 V	CE	Medical	4000 V	1	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	92 %	Chassis Mount	Open Frame
Bel Power Solutions MBC180-1024L	5 A	24 V	CE	Medical	4000 V	1	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	90 %	Chassis Mount	Open Frame
Bel Power Solutions MBC180-1T15L	8 A	15 V	CE	Medical	4000 V	1	3 "	5 in	127 mm			0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	88 %	Chassis Mount	Open Frame	19 mm	76.2 mm	264 VAC	80 VAC
Bel Power Solutions MBC180-1030L	4 A		CE	Medical	4000 V	1	3 "	5 in	127 mm			0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	90 %	Chassis Mount	Open Frame	19 mm	76.2 mm	264 VAC	80 VAC
Bel Power Solutions MBC180-1015L	8 A	15 V	CE	Medical	4000 V	1	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	88 %	Chassis Mount	Open Frame
Bel Power Solutions MBC180-1T24L	5 A	24 V	CE	Medical	4000 V	1	2 in	4 in	101.6 mm	50.8 mm	19.1 mm	0.75 in	120 W, 180 W	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	90 %	Chassis Mount	Open Frame
