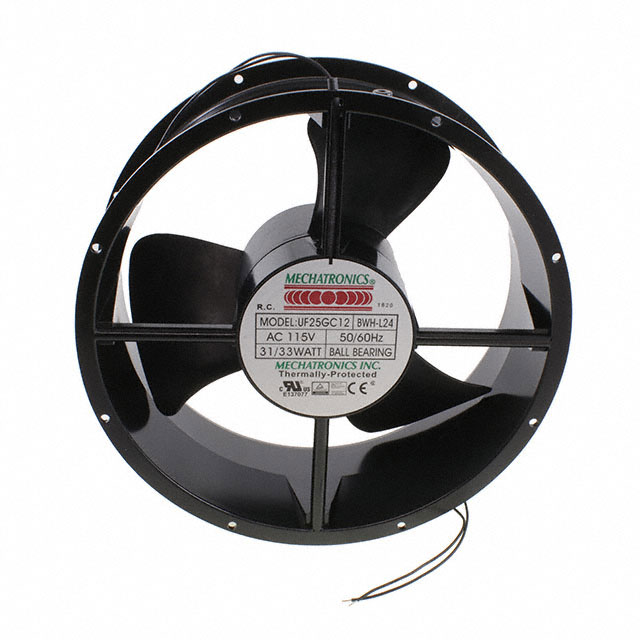

UF25GC12-BWHR-L24

Active

Mechatronics Fan Group

FAN AXIAL 254X89MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF25GC12-BWHR-L24

Active

Mechatronics Fan Group

FAN AXIAL 254X89MM 115VAC WIRE

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 86.09
		10	$ 77.89
		25	$ 72.77
		50	$ 71.74
		100	$ 66.11

Description

General part information

UF25G Series

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 550.0 CFM (15.40m³/min) 2 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet

Specification	UF25GC12-BWHR-L24	UF25G Series

Air Flow	15.4 mł/min	15.4 - 22.74 m³/min
Air Flow	550 CFM	550 - 812 CFM
Approval Agency	CE, cUL, TUV, UL	CE, ETL, TUV, cETL, CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.29 A	0.29 - 660 mA
Current Rating (Amps)	-	0.29 A
Current Rating (Amps)	-	0.14 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach), Dual Voltage, Salt Fog Rated
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	55 dB	55 - 65 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	33 W	33 - 98 W
RPM	1650 RPM	1650 - 3200 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	10 in	10 in
Static Pressure	0.4 in H2O	0.37 - 0.82 in H2O
Static Pressure	99.6 Pa	92.2 - 204.3 Pa
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	1.9 kg	1.9 kg
Weight	4.1 lbs	4.1 lbs
Width [y]	89 mm	89 mm

Part

Air Flow

RPM

Material - Blade

Bearing Type

Noise

Fan Type

Approval Agency

Termination

Current Rating (Amps)

Material - Frame

Weight

Static Pressure

Operating Temperature [Max]

Operating Temperature [Min]

Voltage - Rated

Power (Watts)

Features

Size / Dimension [diameter]

Size / Dimension

Width [y]

Ingress Protection

Termination

Current Rating (Amps) [Max]

Current Rating (Amps) [Min]

Voltage - Rated [Max]

Voltage - Rated [Min]

Mechatronics Fan Group

UF25GCB23-BTHR

22.74 m³/min

812 CFM

3200 RPM

Polybutylene Terephthalate (PBT)

Ball

65 dB

Tubeaxial

CE, cETL, ETL, TUV

2 Terminals

450 mA

Aluminum

1.9 kg

4.1 lbs

204.3 Pa

0.82 in H2O

70 °C

-40 °C

230 VAC

98 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

Mechatronics Fan Group

UF25GC23-BWHR-L24

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Wire Leads

140 mA

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

230 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

Mechatronics Fan Group

UF25GC12-BWHNR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Wire Leads

0.29 A

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

115 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF25GC12-BTHNR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Terminals

0.29 A

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

115 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF25GC23-BTHR-B1

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

140 mA

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

230 VAC

33 W

Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

10 in

Round

89 mm

3 Terminals

Mechatronics Fan Group

UF25GC23-BTHR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Terminals

140 mA

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

230 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

Mechatronics Fan Group

UF25GC12/23-BWHR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Wire Leads

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

33 W

Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

0.29 A

0.14 A

230 VAC

115 VAC

Mechatronics Fan Group

UF25GC23-BTHNR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Terminals

140 mA

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

230 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF25GC12-BTHNSR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Terminals

0.29 A

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

115 VAC

33 W

Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)

10 in

Round

89 mm

IP55 - Dust Protected, Water Resistant

Mechatronics Fan Group

UF25GC23-BWHR

15.4 mł/min

550 CFM

1650 RPM

Polybutylene Terephthalate (PBT)

Ball

55 dB

Tubeaxial

CE, cUL, TUV, UL

2 Wire Leads

140 mA

Aluminum

1.9 kg

4.1 lbs

99.6 Pa

0.4 in H2O

70 °C

-40 °C

230 VAC

33 W

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

10 in

Round

89 mm

Part	Air Flow	Air Flow	RPM	Material - Blade	Bearing Type	Noise	Fan Type	Approval Agency	Termination	Current Rating (Amps)	Material - Frame	Weight	Weight	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Power (Watts)	Features	Size / Dimension [diameter]	Size / Dimension	Width [y]	Ingress Protection	Termination	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]
Mechatronics Fan Group UF25GCB23-BTHR	22.74 m³/min	812 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Ball	65 dB	Tubeaxial	CE, cETL, ETL, TUV	2 Terminals	450 mA	Aluminum	1.9 kg	4.1 lbs	204.3 Pa	0.82 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	98 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC23-BWHR-L24	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC12-BWHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC12-BTHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC23-BTHR-B1	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL		140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	10 in	Round	89 mm		3 Terminals
Mechatronics Fan Group UF25GC23-BTHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC12/23-BWHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads		Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C		33 W	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm			0.29 A	0.14 A	230 VAC	115 VAC
Mechatronics Fan Group UF25GC23-BTHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC12-BTHNSR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC23-BWHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
