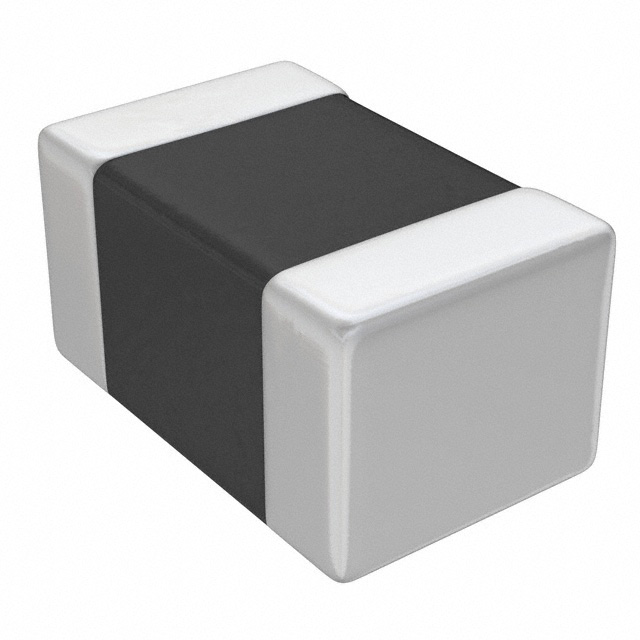

Z0805C221BPWZT - 0805 (2012 Metric)

Z0805C221BPWZT

Obsolete
KEMET

FERRITE BEAD 220 OHM 0805 1LN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_FB0002_Z-PWZ.pdfDatasheet+1
Z0805C221BPWZT - 0805 (2012 Metric)

Z0805C221BPWZT

Obsolete
KEMET

FERRITE BEAD 220 OHM 0805 1LN

Deep-Dive with AI

DocumentsKEM_FB0002_Z-PWZ.pdfDatasheet+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationZ0805C221BPWZTZ0805C Series
Current Rating (Max) [Max]2 A1 - 600 mA
DC Resistance (DCR) (Max)-20 mOhm
DC Resistance (DCR) (Max) [Max]60 mOhm32 - 350 mOhm
Filter TypePower LinePower Line
Height (Max)1.05 mm1.05 mm
Height (Max) [Max]0.041 in0.041 in
Impedance @ Frequency220 Ohms33 - 600 Ohms
Mounting TypeSurface MountSurface Mount
Number of Lines11
Operating Temperature [Max]125 °C85 - 125 °C
Operating Temperature [Min]-40 °C-55 - -40 °C
Package / Case08050805
Size / Dimension [x]2 mm2 mm
Size / Dimension [x]0.079 in0.079 in
Size / Dimension [y]0.049 in0.049 in
Size / Dimension [y]1.25 mm1.25 mm

Z0805C Series

FERRITE BEAD 600 OHM 0805 1LN

PartPackage / CaseSize / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]Number of LinesCurrent Rating (Max) [Max]Mounting TypeOperating Temperature [Min]Operating Temperature [Max]Impedance @ FrequencyHeight (Max)Height (Max) [Max]DC Resistance (DCR) (Max) [Max]Filter TypeDC Resistance (DCR) (Max)
KEMET
Z0805C601BSMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
500 mA
Surface Mount
-55 °C
125 °C
600 Ohms
1.05 mm
0.041 in
250 mOhm
KEMET
Z0805C241CSMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
300 mA
Surface Mount
-55 °C
125 °C
240 Ohms
1.05 mm
0.041 in
350 mOhm
KEMET
Z0805C601ASMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
500 mA
Surface Mount
-55 °C
125 °C
600 Ohms
1.05 mm
0.041 in
300 mOhm
KEMET
Z0805C750ASMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
1 A
Surface Mount
-55 °C
125 °C
1.05 mm
0.041 in
100 mOhm
KEMET
Z0805C221BPWZT
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
2 A
Surface Mount
-40 °C
125 °C
220 Ohms
1.05 mm
0.041 in
60 mOhm
Power Line
KEMET
Z0805C121BPWZT
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
2.5 A
Surface Mount
-40 °C
125 °C
120 Ohms
1.05 mm
0.041 in
32 mOhm
Power Line
KEMET
Z0805C330APMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
4 A
Surface Mount
-55 °C
85 °C
33 Ohms
1.05 mm
0.041 in
Power Line
20 mOhm
KEMET
Z0805C330ASMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
1.2 A
Surface Mount
-55 °C
125 °C
33 Ohms
1.05 mm
0.041 in
50 mOhm
KEMET
Z0805C241ASMST
0805
2 mm
0.079 in
0.049 in
1.25 mm
1
600 mA
Surface Mount
-55 °C
125 °C
240 Ohms
1.05 mm
0.041 in
200 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.27
10$ 0.19
25$ 0.16
50$ 0.14
100$ 0.13
250$ 0.11
500$ 0.10
1000$ 0.09

Description

General part information

Z0805C Series

220 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 2A 60mOhm
