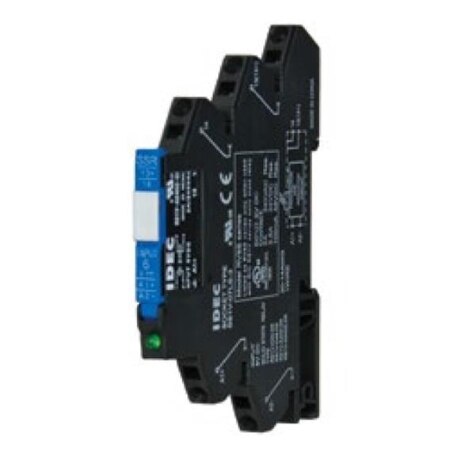

Specification	RV8H-2L-AD18-C1D2

Approval Agency	cULus, CE
Coil Current	24 mA
Coil Type	Non Latching
Coil Voltage	18 VDC
Coil Voltage (Type)	AC, DC
Contact Form	Form, 2 Form C, C, 2, DPDT
Contact Material	Gold (Au), Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Features	Socket Included
Mounting Type	DIN Rail
Must Operate Voltage	14.4 VDC
Must Operate Voltage Type	AC, DC
Must Release Voltage	1.26 V
Must Release Voltage Type	AC, DC
Operate Time	15 ms
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage (Nominal)	250 VAC
Termination Style	Screw Terminal

RV8H Series

Part	Mounting Type	Termination Style	Release Time	Coil Voltage	Contact Rating (Current)	Must Operate Voltage	Features	Contact Form	Relay Type	Approval Agency	Switching Voltage (Nominal)	Operate Time	Coil Type	Must Release Voltage	Contact Material	Coil Current	Operating Temperature (Min)	Operating Temperature (Max)	Coil Resistance	Must Operate Voltage Type	Must Release Voltage Type	Coil Voltage (Type)
IDEC RV8H-1L1-D24	DIN Rail	Screw Terminal	15 ms	24 VDC	16 A	19.2 V	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	1.68 V	Silver Nickel (AgNi)	0.02 A	-40 °C	55 °C	1.2 kOhms
IDEC RV8H-1L1-AD24	DIN Rail	Screw Terminal	15 ms	24 VDC	16 A	19.2 V	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	1.68 V	Silver Nickel (AgNi)	21 mA	-40 °C	55 °C	1.14 kOhms	AC DC	AC DC	AC DC
IDEC RV8H-1L1-AD12	DIN Rail	Screw Terminal	15 ms	12 VAC	16 A	9.6 VDC	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	0.84 VDC	Silver Nickel (AgNi)	29 mA	-40 °C	55 °C	414 Ohms	AC DC	AC DC	AC DC
IDEC RV8H-1L1-D12	DIN Rail	Screw Terminal	15 ms	12 VAC	16 A	9.6 VDC	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	0.84 VDC	Silver Nickel (AgNi)	32 mA	-40 °C	55 °C	375 Ohms
IDEC RV8H-1L1-AD220	DIN Rail	Screw Terminal	15 ms	230 VDC	16 A	184 VDC	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	16.1 V	Silver Nickel (AgNi)	5.5 mA	-40 °C	55 °C	43.6 kOhms	AC DC	AC DC	AC DC
IDEC RV8H-1L1-AD60	DIN Rail	Screw Terminal	15 ms	60 VDC	16 A	48 VDC	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	4.2 VDC	Silver Nickel (AgNi)	9 mA	-40 °C	55 °C	6.67 kOhms	AC DC	AC DC	AC DC
IDEC RV8H-1L1-AD48	DIN Rail	Screw Terminal	15 ms	48 V	16 A	38.4 V	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	3.36 V	Silver Nickel (AgNi)	9 mA	-40 °C	55 °C	5.3 kOhms	AC DC	AC DC	AC DC
IDEC RV8H-1L1-AD110	DIN Rail	Screw Terminal	15 ms	120 V	16 A	96 V	Socket Included	1 C Form SPDT	General Purpose	CE cULus	250 VAC	15 ms	Non Latching	8.4 VAC	Silver Nickel (AgNi)	5.8 mA	-40 °C	55 °C	21.5 kOhms	AC DC	AC DC	AC DC
