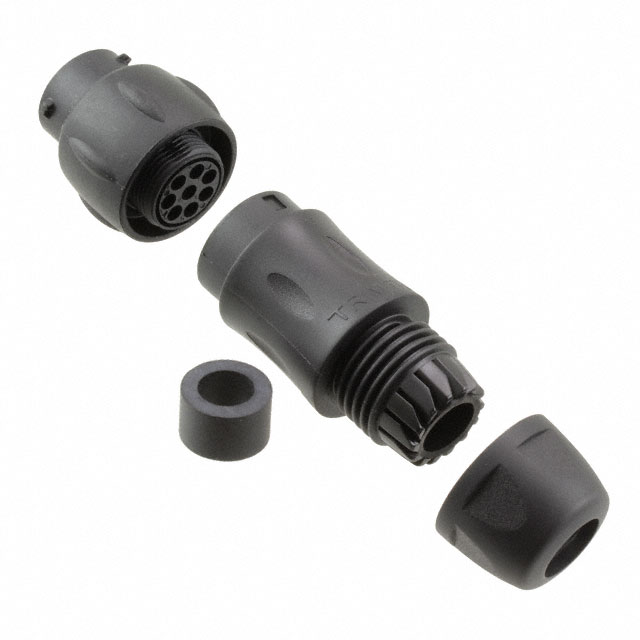

UTS1JC128P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTS1JC128P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 8POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.29

Description

General part information

UTS1J Series

8 Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS1JC128P	UTS1J Series

	-	-
Applications	-	Instrumentation, Energy, Lighting, Telecommunications
Backshell Material, Plating	-	Polyamide (PA), Nylon
Cable Diameter	-	6 mm
Cable Diameter	-	0.12 in
Cable Diameter	-	3 mm
Cable Diameter	-	0.24 in
Cable Diameter	-	6 mm
Color	-	Black
Connector Type	Receptacle Housing	Receptacle Housing, Receptacle, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	16 Áin
Contact Finish Thickness - Mating	-	0.41 Ám
Contact Material	-	Copper Alloy
Contact Shape	Circular	Circular
Contact Size	16	8 - 20
Contact Size	-	20 (3), 16 (3), 12 (2), 20 (2), 16 (4), 12 (4)
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	10 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Circular Bayonet Coupling, UV Resistant
For Use With/Related Products	-	MPO Receptacles, LC Connectors
Housing Color	Black	Black
Housing Material	-	Thermoplastic, Plastic
Ingress Protection	IP68, IP69K	IP68, IP69K, IP68 - Dust Tight, Waterproof, IP67/IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	4 - 19
Number of Positions	-	1
Number of Positions	-	6
Number of Positions	-	3
Number of Positions	-	1
Number of Positions	-	2
Number of Positions	-	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Primary Material	-	Plastic
Shell Size - Insert	12-8	14-12, 12-4, 10-3W3, 10-2W2, 14-8, 10-4, 12-8, 14-2, 10-6, 10-3
Shell Size - Insert	-	14 - 32
Shell Size - Insert	-	7 - 18
Shell Size - Insert	-	19
Shell Size - Insert	-	14
Shielding	Unshielded	Unshielded
Simplex/Duplex	-	Simplex, Duplex
Termination	-	Screw
Type	For Male Pins	For Male Pins, For Female Sockets
Voltage Rating	-	500 V

UTS1J Series

CONN RCPT HSG MALE 12POS INLINE

Part	Contact Shape	Type	Contact Size	Ingress Protection	Note	Housing Color	Mounting Type	Contact Type	Shell Size - Insert	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Number of Positions	Material Flammability Rating	Orientation	Insert Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size	Simplex/Duplex	For Use With/Related Products	Housing Material	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]
Souriau-Sunbank by Eaton UTS1JC1412P	Circular	For Male Pins	16	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	14-12	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	12	UL94 V-0	N	Nylon, Polyamide (PA)
Souriau-Sunbank by Eaton UTS1JC1832P	Circular	For Male Pins	20	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp		Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell		UL94 V-0	N	Nylon, Polyamide (PA)	32	18
Souriau-Sunbank by Eaton UTS1JC124S	Circular	For Female Sockets	16	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	12-4	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	4	UL94 V-0	N	Nylon, Polyamide (PA)
Souriau-Sunbank by Eaton UTS1JC1412S	Circular	For Female Sockets	16	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	14-12	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	12	UL94 V-0	N	Nylon, Polyamide (PA)
Souriau-Sunbank by Eaton UTS1JC1210P	Circular	For Male Pins	20	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp		Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	10	UL94 V-0	N	Nylon, Polyamide (PA)
Souriau-Sunbank by Eaton UTS1JC103W3S	Circular	For Female Sockets		IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	10-3W3	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	6	UL94 V-0	N	Nylon, Polyamide (PA)			16 (3), 20 (3)
Souriau-Sunbank by Eaton UTS1JC102W2S	Circular	For Female Sockets		IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	10-2W2	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	4	UL94 V-0	N	Nylon, Polyamide (PA)			12 (2), 20 (2)
Souriau-Sunbank by Eaton UTS1JC18MPN				IP68 - Dust Tight, Waterproof		Black	Free Hanging (In-Line)			Receptacle		-40 °C	105 ░C		Circular Bayonet Coupling		UL94 V-0						Simplex	MPO Receptacles	Thermoplastic	6 mm	0.12 in	3 mm	0.24 in
Souriau-Sunbank by Eaton UTS1JC148P	Circular	For Male Pins		IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	14-8	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	8	UL94 V-0	N	Nylon, Polyamide (PA)			12 (4), 16 (4)
Souriau-Sunbank by Eaton UTS1JC104P	Circular	For Male Pins	16	IP68, IP69K	Contacts Not Included	Black	Free Hanging (In-Line)	Crimp	10-4	Receptacle Housing	Bayonet Lock	-40 °C	105 ░C	Unshielded	Backshell	4	UL94 V-0	N	Nylon, Polyamide (PA)
