T4131412031-000
ActiveTE Connectivity AMP Connectors

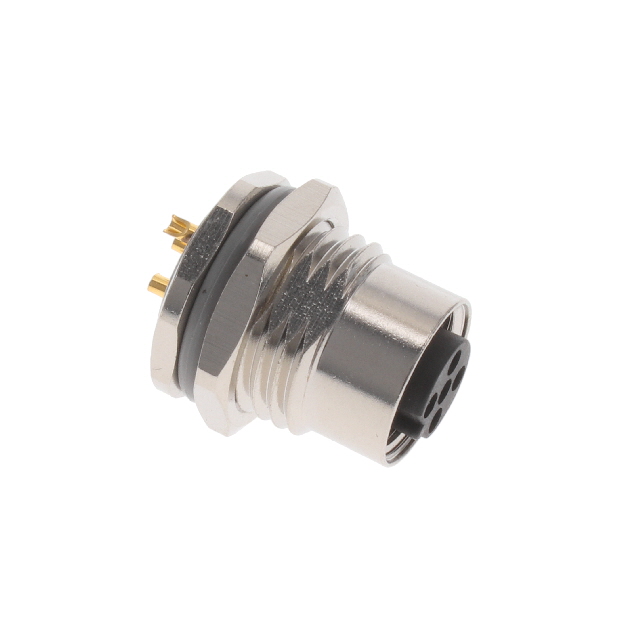

CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
T4131412031-000
ActiveTE Connectivity AMP Connectors
CONN PLUG FMALE 3POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4131412031-000 | T41314 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Orientation | B | B |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-3 | M12-3, M12-4 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.45 | |
| 10 | $ 5.65 | |||
| 100 | $ 5.06 | |||
| 1000 | $ 4.20 | |||
T41314 Series
CONN PLUG FMALE 3POS SOLDER CUP
| Part | Primary Material | Material Flammability Rating | Color | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Material | Shell Finish | Orientation | Contact Finish - Mating | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Material | Shell Size - Insert | Insert Material | Current Rating (Amps) | Applications | Ingress Protection | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4131412031-000 | Metal | UL94 V-0 | Silver | Bulkhead - Front Side Nut | -30 ░C | 85 °C | Unshielded | Copper Alloy | Nickel | B | Gold | 250 VDC | 3 µin | 0.076 µm | Female Sockets, Plug | Copper Alloy | M12-3 | Polyamide (PA66), Nylon 6/6 | 4 A | Industrial | IP67 - Dust Tight, Waterproof | |
TE Connectivity AMP Connectors T4131412041-000 | Metal | UL94 V-0 | Silver | Bulkhead - Front Side Nut | -30 ░C | 85 °C | Unshielded | Copper Alloy | Nickel | B | Gold | 250 VDC | 3 µin | 0.076 µm | Female Sockets, Plug | Copper Alloy | M12-4 | Polyamide (PA66), Nylon 6/6 | 4 A | Industrial | IP67 - Dust Tight, Waterproof | 4 |
Description
General part information
T41314 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
