Description

General part information

430040-501

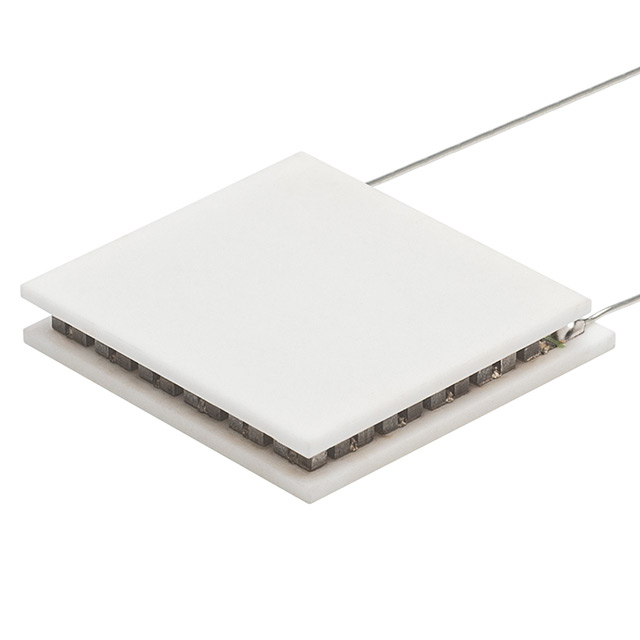

Peltier Module 8.9W @ 25°C 2 A 80°C

Technical Specifications

Parameters and characteristics for this part

Specification430040-501
Current - Max2 A
Delta Tmax67 °C
FeaturesNon-Sealed, Lead Wires
Height2.18 mm
Maximum Power Dissipation (Qmax)8.9 W
Number of Stages1
Operating Temperature80 °C
Resistance3.39 Ohms
Size / Dimension Length13.2 mm
Size / Dimension ShapeSquare
Size / Dimension Width13.2 mm
Voltage - Max7.4 V
