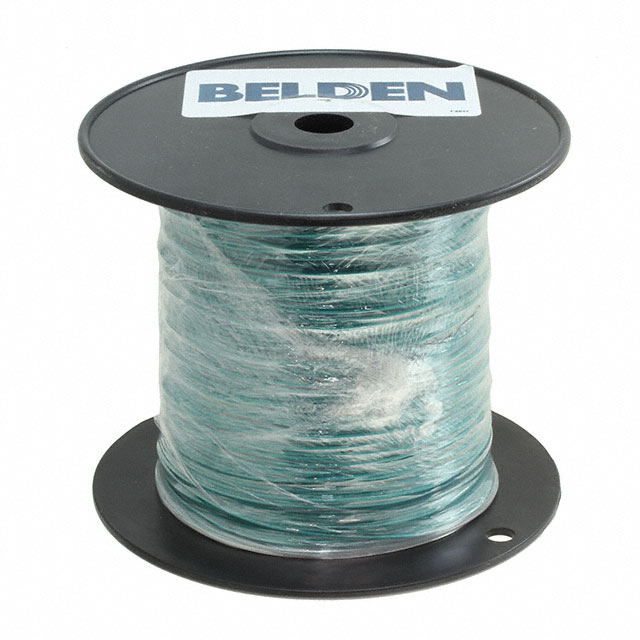

83005 0051000

Active

Belden Inc.

HOOK-UP STRND 22AWG GREEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cabling Solutions for Industrial Applications

83005 0051000

Active

Belden Inc.

HOOK-UP STRND 22AWG GREEN

Deep-Dive with AI

DocumentsDatasheet Cabling Solutions for Industrial Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83005 0051000

Cable Type	Hook-Up
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	High Temperature
Jacket (Insulation) Diameter [diameter]	0.05 in
Jacket (Insulation) Diameter [diameter]	1.27 mm
Jacket (Insulation) Material	Tetrafluoroethylene (TFE)
Jacket (Insulation) Thickness	0.25 mm
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Qualification	MIL-W-16878/4
Ratings	UL Style 1213
Voltage	600 V
Wire Gauge	22 AWG

83005 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Wire Gauge	Voltage	Jacket (Insulation) Material	Length	Length	Features	Cable Type	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Length [x]	Length [x]
Belden Inc. 83005 0031000	7	30 AWG	Orange	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated
Belden Inc. 83005 002100	7	30 AWG	Red	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)			High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated	30.5 m	100 ft
Belden Inc. 83005 0021000	7	30 AWG	Red	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated
Belden Inc. 83005 0091000	7	30 AWG		0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated
Belden Inc. 83005 004100	7	30 AWG	Yellow	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)			High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated	30.5 m	100 ft
Belden Inc. 83005 0081000	7	30 AWG	Gray	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated
Belden Inc. 83005 0051000	7	30 AWG	Green	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated
Belden Inc. 83005 009100	7	30 AWG		0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)			High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated	30.5 m	100 ft
Belden Inc. 83005 0011000	7	30 AWG	Brown	0.25 mm	0.01 in	0.05 in	1.27 mm	UL Style 1213	22 AWG	600 V	Tetrafluoroethylene (TFE)	1000 ft	304.8 m	High Temperature	Hook-Up	MIL-W-16878/4	200 °C	-70 °C	Copper Silver Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.13
		3000	$ 1.06
		5000	$ 1.01
		10000	$ 0.98

Description

General part information

83005 Series

22 AWG Hook-Up Wire 7/30 Green 600V 1000.0' (304.8m)
