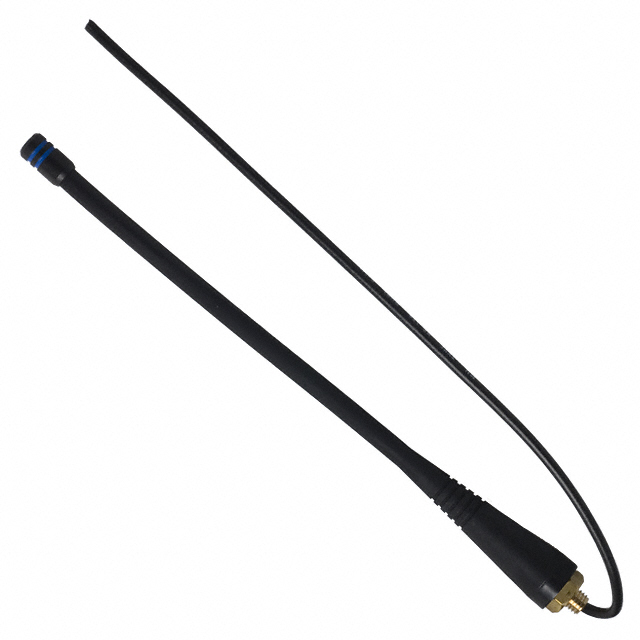

ANT-418-PW-QW
ActiveTE Connectivity Linx
RF ANT 418MHZ WHIP STR CAB PAN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-418-PW-QW
ActiveTE Connectivity Linx
RF ANT 418MHZ WHIP STR CAB PAN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-418-PW-QW |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | ISM, Alarms, Security Systems, Remote Control |
| Features | Cable |
| Features | 216 mm |
| Frequency (Center/Band) | 418 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Gain | 2.9 dBi |
| Height (Max) [Max] | 178 mm |
| Height (Max) [Max] | 7.008 in |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Solder |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.97 | |
Description
General part information
ANT-418-PW-QW
RF ANTENNA Alarms, ISM, Remote Control, Security Systems Whip, Straight Solder Panel Mount
Documents
Technical documentation and resources
