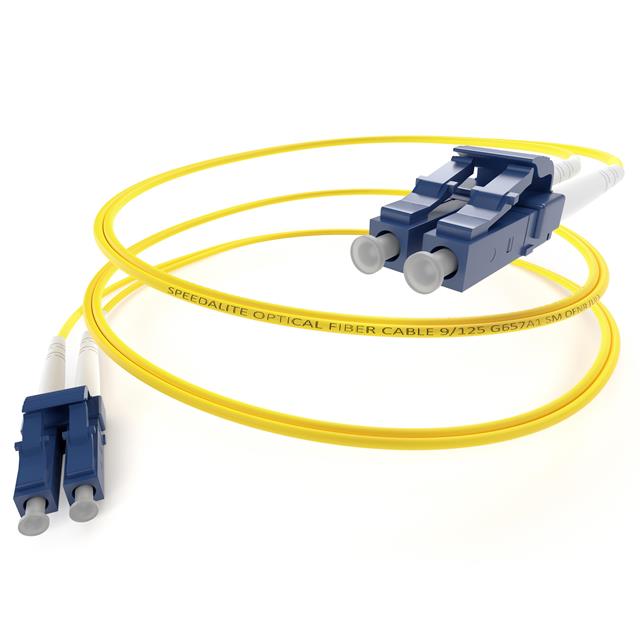

FJ9LCLC-1.5M

Active

UNC Group

SINGLEMODE LC TO LC FIBER 1.5M

Search across all available documentation for this part.

Active

UNC Group

SINGLEMODE LC TO LC FIBER 1.5M

Technical Specifications

Parameters and characteristics for this part

Specification	FJ9LCLC-1.5M

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius [radius]	10 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow
Color - Connectors	Blue
Features	Dust Cap, Zipcord, Riser
Fiber Type	9/125
Insertion Loss	0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length - Overall	1.5 m
Length - Overall [x]	4.9 ft
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Return Loss	55 dB
Type	Singlemode, OS2, Duplex

SINGLEMODE LC TO LC FIBER 1.5M

Part	Color - Cable	Fiber Type	2nd Connector	Ratings	1st Connector	Cable Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Color - Connectors	Jacket (Insulation) Material	Return Loss	Length - Overall [x]	Length - Overall	Cable Diameter [diameter]	Cable Diameter [diameter]	Bend Radius [radius]	Type
UNC Group FJ9LCLC-1.5M	Yellow	9/125	LC Duplex	OFNR	LC Duplex	Twin Zip, Bend Insensitive Fiber (BIF)	Dust Cap, Riser, Zipcord	-20 C	60 °C	0.2 dB	Blue	Poly-Vinyl Chloride (PVC)	55 dB	4.9 ft	1.5 m	2 mm	0.08 in	10 mm	Duplex, OS2, Singlemode

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic LC Duplex To LC Duplex 9/125 4.9' (1.5m)
