EZ-240-TF-RP-X
ActiveAmphenol Times Microwave Systems

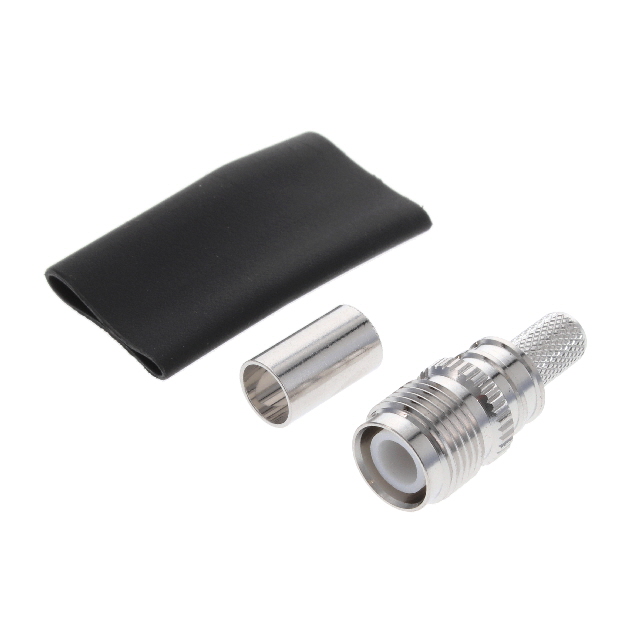

TNC-FEMALE (JACK) CRIMP/REVERSE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZ-240-TF-RP-X
ActiveAmphenol Times Microwave Systems
TNC-FEMALE (JACK) CRIMP/REVERSE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZ-240-TF-RP-X | EZ-240 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Tin, Nickel |
| Body Material | Brass | Brass |
| Cable Group | LMR-240 | LMR-240, LMR-195, LMR-240-75 |
| Center Contact Material | Beryllium Copper | Brass, Beryllium Copper, Phosphor Bronze |
| Center Contact Plating | Gold | Gold |
| Connector Style | RP-TNC | BNC, N Type, TNC, 1.0/2.3, 4.3/10, RP-TNC, SMA, QN, F Type |
| Connector Type | Male Pin, Jack | Male Pin, Plug, Female Socket, Jack |
| Contact Termination | Push On | Push On, Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Bayonet Lock, Snap-On, Push-Pull |
| Frequency - Max [Max] | 6000 MHz | 1.5 - 6000 MHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Includes | - | 1 Connector, 1 Ferrule, 1 Nut, 1 Lockwasher |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 70 - 165 °C |
| Operating Temperature [Min] | -40 °C | -65 - -40 °C |
| Shield Termination | Crimp | Crimp |
| Voltage Rating | - | 2.5 - 1000 V |
EZ-240 Series
BNC-MALE (PLUG) CRIMP RIGHT ANGL
| Part | Frequency - Max [Max] | Voltage Rating | Number of Ports | Body Material | Contact Termination | Impedance | Housing Color | Shield Termination | Mating Cycles | Center Contact Plating | Mounting Type | Cable Group | Connector Type | Fastening Type | Body Finish | Center Contact Material | Connector Style | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Times Microwave Systems EZ-240-BM-RA-X | 6000 MHz | 500 V | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | 500 | Gold | Free Hanging (In-Line), Right Angle | LMR-240 | Male Pin, Plug | Bayonet Lock | White Bronze | Brass | BNC | Polytetrafluoroethylene (PTFE) | 155 °C | -55 °C | ||
Amphenol Times Microwave Systems EZ-240-FM-75-X | 2.5 GHz | 1 | Brass | Crimp | 50 Ohms | Silver | Crimp | 500 | Gold | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | Bayonet Lock | White Bronze | Beryllium Copper | BNC | Polytetrafluoroethylene (PTFE) | 125 °C | -55 °C | 1 Connector, 1 Ferrule | ||
Amphenol Times Microwave Systems EZ-240-NMH-RA-X | 6000 MHz | 1 | Push On | 50 Ohms | Silver | Crimp | Gold | Free Hanging (In-Line), Right Angle | LMR-240 | Male Pin, Plug | White Bronze | N Type | 85 °C | -40 °C | ||||||||
Amphenol Times Microwave Systems EZ-240-QM-RA-X | 6000 MHz | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | Gold | Free Hanging (In-Line), Right Angle | LMR-240 | Male Pin, Plug | Snap-On | White Bronze | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | |||||
Amphenol Times Microwave Systems EZ-240-TM-PL-X | 1 | Push On | 50 Ohms | Silver | Crimp | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | TNC | |||||||||||||
Amphenol Times Microwave Systems EZ-240-NMH-75-X | 6000 MHz | 2.5 kV | 1 | Brass | Crimp | 50 Ohms | Silver | Crimp | 500 | Gold | LMR-240 | Female Socket, Jack | White Bronze | Beryllium Copper | N Type | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut | Bulkhead - Front Side Nut | ||
Amphenol Times Microwave Systems EZ-240-QM-X | 8 GHz | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | Gold | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | Snap-On | White Bronze | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | |||||
Amphenol Times Microwave Systems EZ-240-1023M-X | 6000 MHz | 500 V | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | 500 | Gold | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | Push-Pull | White Bronze | Beryllium Copper | 1.0/2.3 | Polytetrafluoroethylene (PTFE) | 125 °C | -55 °C | ||
Amphenol Times Microwave Systems EZ-240-4310M-X | 6000 MHz | 2.5 kV | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | 500 | Gold | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | White Bronze | Beryllium Copper | 4.3/10 | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C | |||
Amphenol Times Microwave Systems EZ-240-TM-RP-PL-X | 6000 MHz | 2.5 kV | 1 | Brass | Push On | 50 Ohms | Silver | Crimp | Gold | Free Hanging (In-Line) | LMR-240 | Male Pin, Plug | White Bronze | Beryllium Copper | RP-TNC | Polytetrafluoroethylene (PTFE) | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.62 | |
| 10 | $ 10.30 | |||
| 25 | $ 9.90 | |||
| 50 | $ 9.51 | |||
| 100 | $ 9.30 | |||
| Retail Package | 1 | $ 17.08 | ||
| 25 | $ 16.40 | |||
| 50 | $ 15.88 | |||
| 100 | $ 15.54 | |||
Description
General part information
EZ-240 Series
RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Push On
