TC-500-UMC

Active

Amphenol Times Microwave Systems

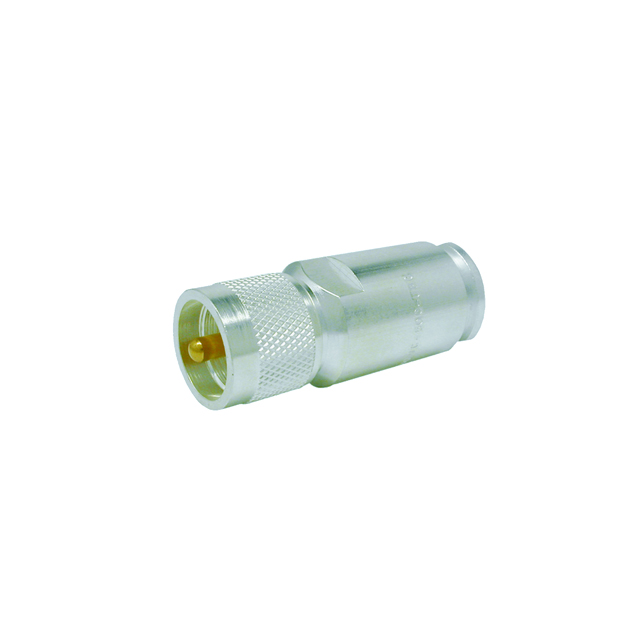

UHF-MALE (PLUG) CLAMP CONNECTOR

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

UHF-MALE (PLUG) CLAMP CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UHF Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TC-500-UMC	TC-500 Series

	-	-
Body Finish	Silver	Silver, White Bronze
Body Material	Brass	Brass
Cable Group	LMR-500	LMR-500
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold, Silver
Connector Style	UHF	UHF, 7/16 DIN, N Type, TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	500 MHz	2.5 - 6000 MHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	-	0.1 dB
Mating Cycles	-	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	75 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -5 ░C
Shield Termination	Clamp	Clamp, Crimp
Voltage Rating	500 V	500 - 1000 V

7/16-DIN MALE (PLUG) SOLDER-ON-P

Part	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Dielectric Material	Contact Termination	Mounting Type	Housing Color	Impedance	Connector Style	Body Material	Body Finish	Frequency - Max [Max]	Shield Termination	Center Contact Material	Voltage Rating	Center Contact Plating	Connector Type	Mating Cycles	Insertion Loss
Amphenol Times Microwave Systems TC-500-716M-LP
Amphenol Times Microwave Systems TC-500-UMC	LMR-500	-65 ░C	165 °C	1	Polytetrafluoroethylene (PTFE)	Solder	Free Hanging (In-Line)	Silver	50 Ohms	UHF	Brass	Silver	500 MHz	Clamp	Brass	500 V	Gold	Male Pin, Plug
Amphenol Times Microwave Systems TC-500-716F-LP
Amphenol Times Microwave Systems TC-500-NM-RA-LP
Amphenol Times Microwave Systems TC-500-716M-RA-D	LMR-500	-40 °C	125 °C	1	Polytetrafluoroethylene (PTFE)	Solder	Free Hanging (In-Line), Right Angle	Silver	50 Ohms	7/16 DIN	Brass	White Bronze	3 GHz	Crimp	Brass		Silver	Male Pin, Plug	500
Amphenol Times Microwave Systems TC-500-716F-X	LMR-500	-40 °C	85 °C	1	Polytetrafluoroethylene (PTFE)	Solder	Free Hanging (In-Line)	Silver	50 Ohms	7/16 DIN	Brass	White Bronze	6000 MHz	Crimp	Beryllium Copper		Gold	Female Socket, Jack	500	0.1 dB
Amphenol Times Microwave Systems TC-500-716M-RA-LP
Amphenol Times Microwave Systems TC-500-4310M-LP
Amphenol Times Microwave Systems TC-500-NMC-PL	LMR-500	-5 °C	75 ░C	1	Polytetrafluoroethylene (PTFE)	Solder	Free Hanging (In-Line)	Silver	50 Ohms	N Type	Brass	Silver	2.5 GHz	Clamp	Brass	1000 VDC	Gold	Male Pin, Plug
Amphenol Times Microwave Systems TC-500-716M-X
