926820-4

Active

TE Connectivity AMP Connectors

CONN QC RCPT 15.5-20AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 15.5-20AWG 0.250

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	926820-4	926820 Series

Contact Finish	Tin	Tin, Silver
Contact Material	Brass	Brass, Phosphor Bronze
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max]	3.3 mm	3.3 mm
Insulation Diameter [Max]	0.13 in	0.13 in
Insulation Diameter [Min]	0.087 "	0.087 "
Insulation Diameter [Min]	2.21 mm	2.21 mm
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Flag, Angled - 90°	Flag, Angled - 90°
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	16 AWG	16 AWG

CONN QC RCPT 15.5-20AWG 0.250

Part	Insulation	Contact Material	Contact Finish	Gender	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Termination	Tab Thickness	Tab Thickness	Mounting Type	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]
TE Connectivity AMP Connectors 926820-4	Non-Insulated	Brass	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-1	Non-Insulated	Phosphor Bronze	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-8	Non-Insulated	Phosphor Bronze	Silver	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line)	Angled - 90°, Flag	20 AWG	16 AWG
TE Connectivity AMP Connectors 926820-2	Non-Insulated	Phosphor Bronze	Tin	Female	6.35 mm	0.25 in	0.087 "	3.3 mm	0.13 in	2.21 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	20 AWG	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

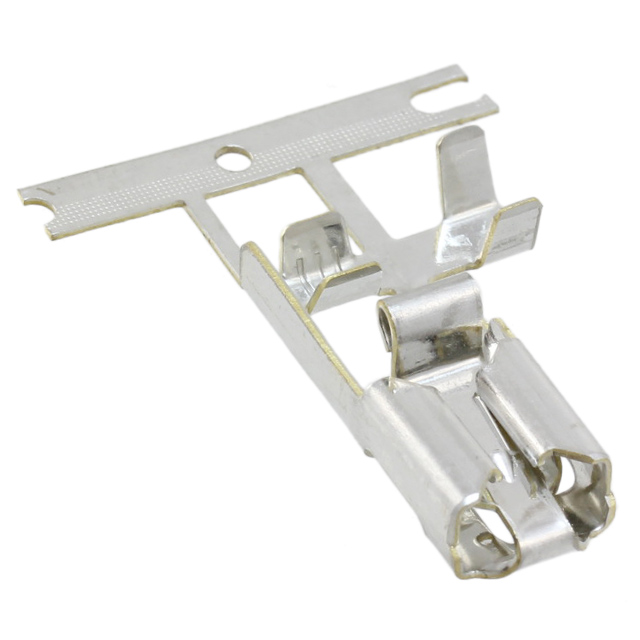

0.250" (6.35mm) Quick Connect Female 15.5-20 AWG Crimp Connector Non-Insulated
