HT-73F-250-32

Active

16-14 AWG HIGH TEMPERATURE BUTTED SEAM FEMALE DISCONNECT

Search across all available documentation for this part.

Active

16-14 AWG HIGH TEMPERATURE BUTTED SEAM FEMALE DISCONNECT

Technical Specifications

Parameters and characteristics for this part

16-14 AWG HIGH TEMPERATURE BUTTED SEAM FEMALE DISCONNECT

Part	Features	Tab Thickness	Tab Thickness	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Termination	Insulation	Tab Width	Tab Width	Mounting Type	Contact Material	Gender	Terminal Type
3M HT-73F-250-32	High Temperature	0.032 in	0.81 mm	Nickel	12 AWG	10 AWG	0.63 "	16 mm	Crimp	Non-Insulated	6.35 mm	0.25 in	Free Hanging (In-Line)	Steel	Female	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

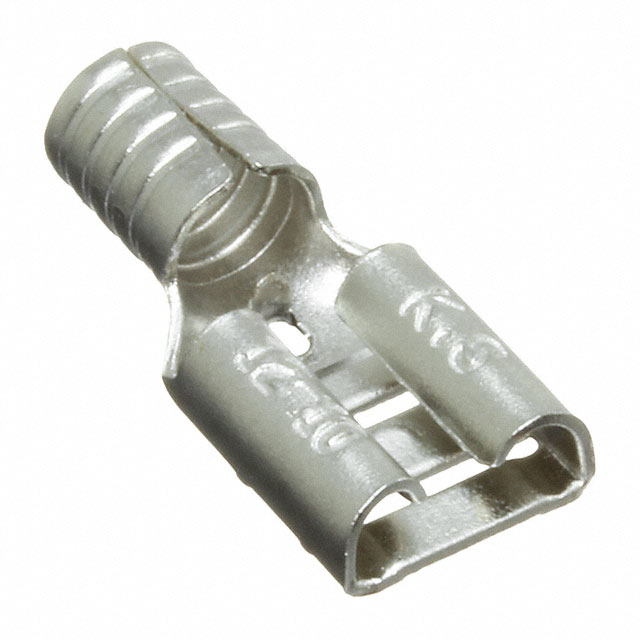

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
