Q-7105200050.5M

Active

Amphenol Custom Cable

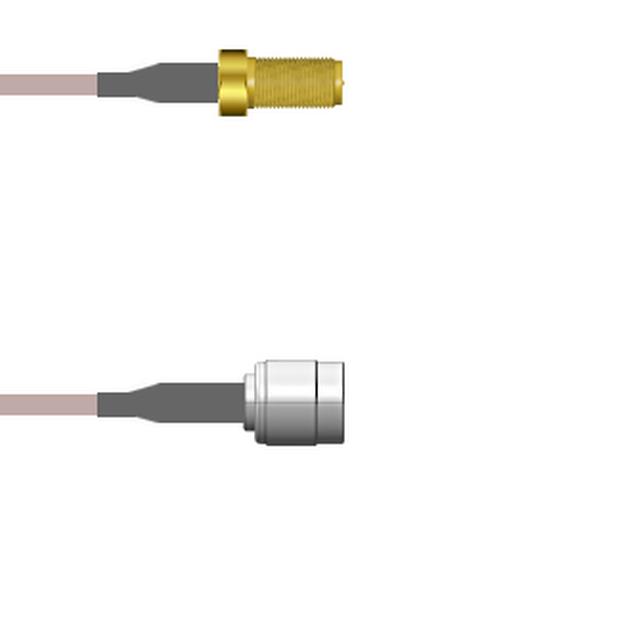

CBL ASSY RPSMA-TNC JCK-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7105200050.5M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-TNC JCK-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-7105200050.5M

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	RP-SMA to TNC

Q-710520 Series

Part	Frequency - Max [Max]	1st Contact Gender	1st Connector	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Connector Impedance	Style	1st Connector Mounting Type	Features	Cable Type	Color	Cable Impedance	Length	Length	Overall Impedance	Length
Amphenol Custom Cable Q-710520005006I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	152.4 mm	6 in	50 Ohms
Amphenol Custom Cable Q-710520005048I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	1200 mm	48 in	50 Ohms	4 ft
Amphenol Custom Cable Q-710520005009I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	228.6 mm	9 "	50 Ohms
Amphenol Custom Cable Q-710520005003I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	76.2 mm	3 in	50 Ohms
Amphenol Custom Cable Q-710520005108I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	2.7 m	108 in	50 Ohms	9 ft
Amphenol Custom Cable Q-710520005001M	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	1 m	39.4 in	50 Ohms	3.3 ft
Amphenol Custom Cable Q-710520005060I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	1.5 m	5 '	50 Ohms	5 ft
Amphenol Custom Cable Q-710520005.75M	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	750 mm	29.53 "	50 Ohms
Amphenol Custom Cable Q-710520005036I	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	91.44 cm	36 in	50 Ohms
Amphenol Custom Cable Q-7105200052.5M	3 GHz	Male	RP-SMA Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	RP-SMA to TNC	Free Hanging (In-Line)	Shielded	RG-316	Copper	50 Ohms	2.5 m	98.4 in	50 Ohms	8.2 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 49.84
		25	$ 48.87
		50	$ 47.90
		100	$ 46.93
		250	$ 45.96

Description

General part information

Q-710520 Series

Cable Assembly Coaxial RP-SMA to TNC RG-316 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
