788800-1

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

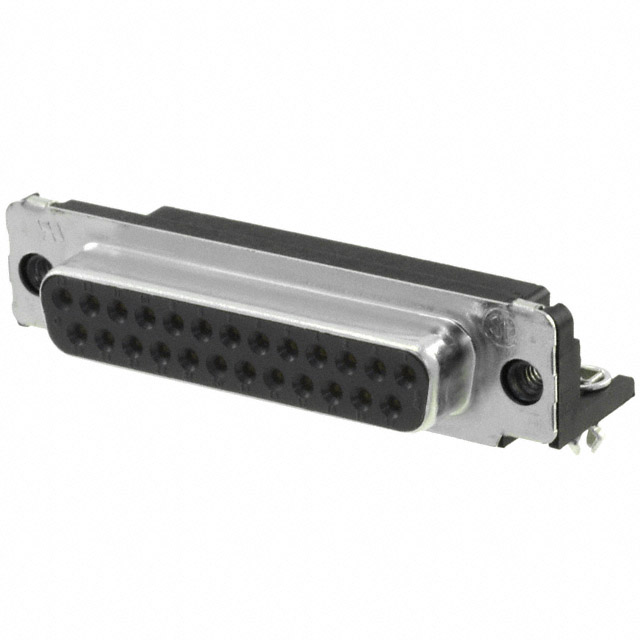

25 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	788800-1	788800 Series

Backset Spacing	8.08 mm	8.08 mm
Backset Spacing	0.318 "	0.318 "
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Finish Thickness	-	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	6 A	6 A
Flange Feature	Housing/Shell (4-40)	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout [custom]	DB, B	DB, B
Shell Size, Connector Layout [custom]	3	3
Termination	Solder	Solder
Voltage Rating	125 VDC	125 VDC

CONN D-SUB RCPT 25POS R/A SLDR

Part	Termination	Voltage Rating	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Backset Spacing	Backset Spacing	Connector Style	Connector Type	Contact Finish	Contact Type	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 788800-1	Solder	125 VDC	Phosphor Bronze	Black	105 ░C	-55 °C	8.08 mm	0.318 "	D-Sub	Receptacle, Female Sockets	Gold	Signal	Housing/Shell (4-40)	6 A	UL94 V-0	B, DB	3	Through Hole, Right Angle	2	0.76 Ám	30 Áin
