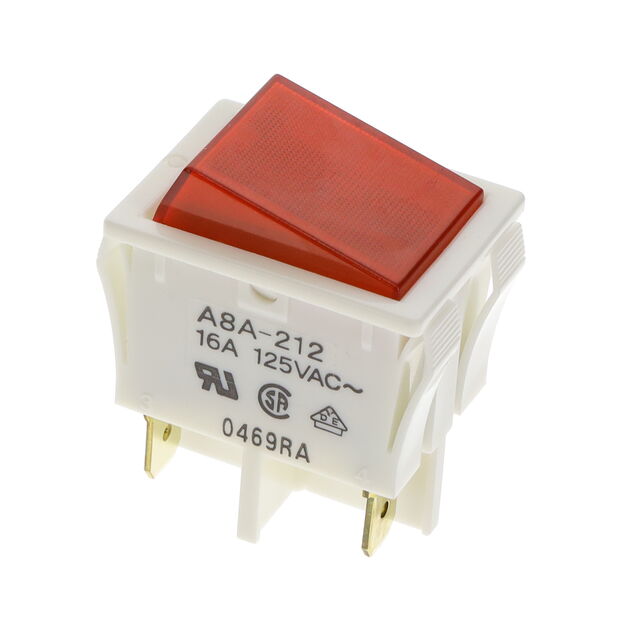

| Actuator Marking | No Marking | No Marking, O I, O - |
| Actuator Type | Flat - Illuminated | Flat - Illuminated, Flat, Concave (Curved), Concave (Standard V) |
| Approval Agency | CSA, EN, UL | CSA, EN, UL, cULus, EN, UL |
| Circuit | DPST | DPST, SPST-NO (1 Form A) x 2, SPST |
| Color - Actuator/Cap | Red | Red, Black, Green, Orange, White, Yellow |
| Current Rating (Amps) | 16 A | 16 A |
| Electrical Life | 20000 Steps | 10000 - 20000 Steps |
| Illumination Type, Color | Red, Neon | Red, Neon, Orange, Green |
| Illumination Voltage (Nominal) | - | 220 VAC/DC |
| Ingress Protection | IP00 | IP00, IP67 - Dust Tight, Waterproof |
| Load Current | - | 120 - 400 mA |
| Mechanical Life | 40000 Cycles | 40000 Cycles |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Through Hole, Surface Mount |
| On-State Resistance (Max) | - | 2 - 35 Ohm |
| Operating Temperature [Max] | 50 °C | 50 - 85 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Output Type | - | DC, AC |
| Package / Case | - | 6-DIP, 4-SOP, 8-SOP, 6-SMD, 8-DIP |
| Package / Case | - | 0.3 in |
| Package / Case | - | 0.173 - 7.62 mm |
| Package / Case | - | 4.4 - 7.62 mm |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 in |
| Panel Cutout Dimensions | - | Rectangular |
| Panel Cutout Dimensions [x] | 30 mm | 19.2 - 30 mm |
| Panel Cutout Dimensions [y] | 22 mm | 12.9 - 22 mm |
| Supplier Device Package | - | 6-DIP, 4-SOP, 8-SOP, 6-SMD, 8-DIP |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm), PC Pin, Gull Wing |
| Voltage - Input | - | 1.15 - 1.4 V |
| Voltage - Load | - | 60 - 350 V |
| Voltage - Load | - | 0 V |
| Voltage Rating - AC | 125 V | 125 V |
