8479 010250

Active

Belden Inc.

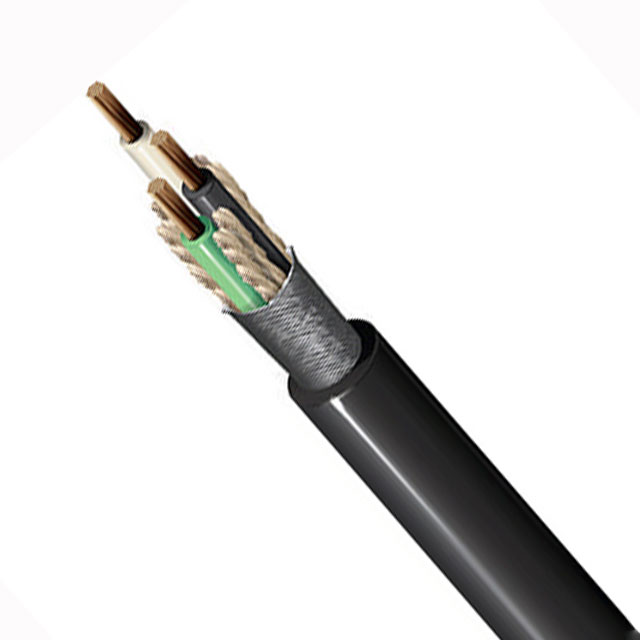

CABLE 3COND 14AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 14AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	8479 010250

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.38 in
Jacket (Insulation) Diameter [diameter]	9.65 mm
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature	60 °C
Wire Gauge	13.5 AWG

Part	Number of Conductors	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature	Conductor Material	Jacket (Insulation) Material	Cable Type
Belden Inc. 8479 010250	3	13.5 AWG	0.38 in	9.65 mm	Black	41	30 AWG	3000 "	76.2 m	Ethylene Propylene Terpolymer Rubber (EPDM)	0.039 in	0.991 mm	60 °C	Copper Bare	Rubber	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 14 AWG 250.0' (76.2m)
