AOZ8934CI-26

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 7VC SOT23-6

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 7VC SOT23-6

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8934CI-26

Applications	USB OTG
Capacitance @ Frequency	0.6 pF
Current - Peak Pulse (10/1000µs)	4 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

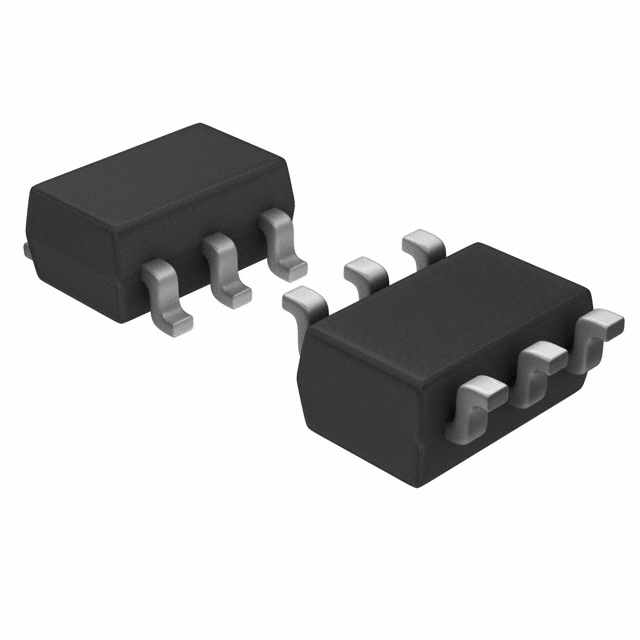

Package / Case	SOT-23-6
Power - Peak Pulse	30 W
Power Line Protection	True
Supplier Device Package	SOT-23-6
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	7 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Unidirectional Channels [custom]	Capacitance @ Frequency	Applications	Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Power Line Protection	Package / Case
Alpha & Omega Semiconductor Inc. AOZ8934CI-26	7 V	SOT-23-6	4	0.6 pF	USB OTG	Steering	Surface Mount	-40 °C	125 ¯C	4 A	6 V	30 W	5 V		SOT-23-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
