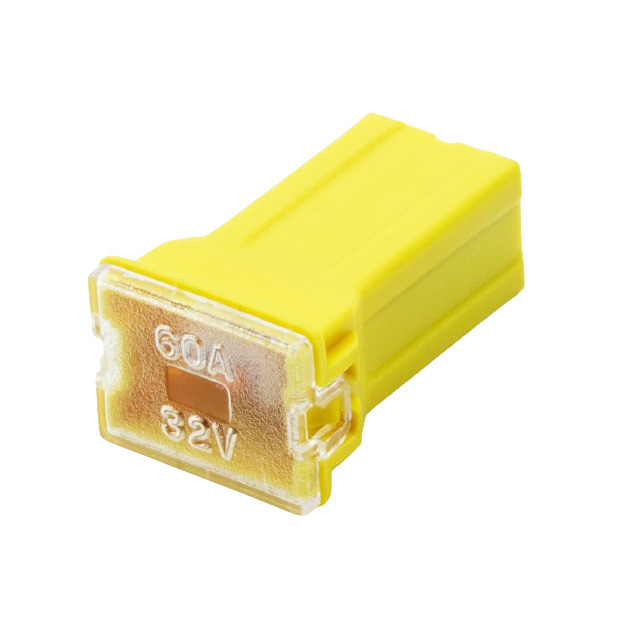

TFLS-60A
ActiveOptiFuse
FUSE AUTO 60A 32VAC 32VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TFLS-60A
ActiveOptiFuse
FUSE AUTO 60A 32VAC 32VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TFLS-60A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Yellow |
| Current Rating (Amps) | 60 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | Auto Link |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.638 in |
| Size / Dimension [x] | 16.2 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Size / Dimension [z] | 1.059 in |
| Size / Dimension [z] | 26.9 mm |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.69 | |
| 10 | $ 3.48 | |||
| 25 | $ 3.28 | |||
| 50 | $ 3.08 | |||
| 100 | $ 2.83 | |||
| 250 | $ 2.79 | |||
| 500 | $ 2.70 | |||
| 1000 | $ 2.62 | |||
Description
General part information
TFLS-60A
60 A 32 V AC 32 V DC Fuse Automotive Requires Holder Auto Link
