1001-003-02000

Active

CnC Tech, LLC

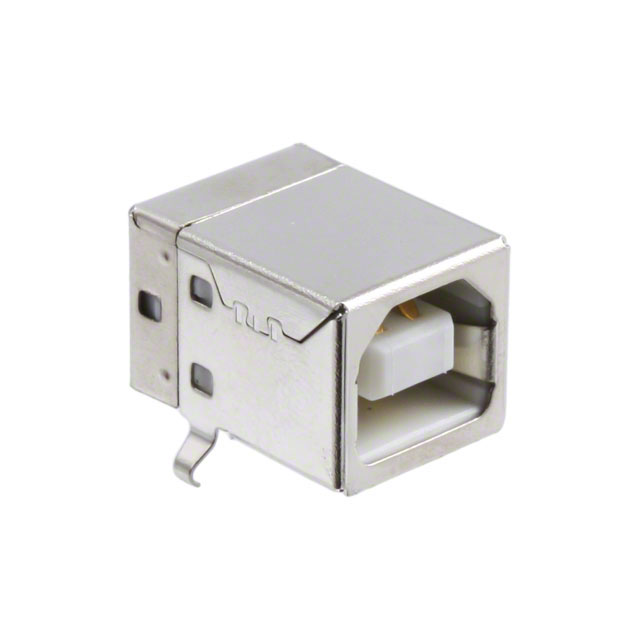

CONN RCPT USB1.1 TYPEB 4POS R/A

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN RCPT USB1.1 TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1001-003-02000

Connector Type	USB-B
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Specifications	USB 1.1
Termination	Solder
Voltage - Rated	30 V

CONN RCPT USB1.1 TYPEB 4POS R/A

Part	Current Rating (Amps)	Voltage - Rated	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Specifications	Termination	Material Flammability Rating	Mounting Feature	Number of Ports	Gender	Mating Cycles	Number of Contacts [custom]
CnC Tech, LLC 1001-003-02000	1.5 A	30 V	USB-B	Through Hole, Right Angle	85 °C	-55 °C	USB 1.1	Solder	UL94 V-0	Horizontal	1	Receptacle	1500	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle
