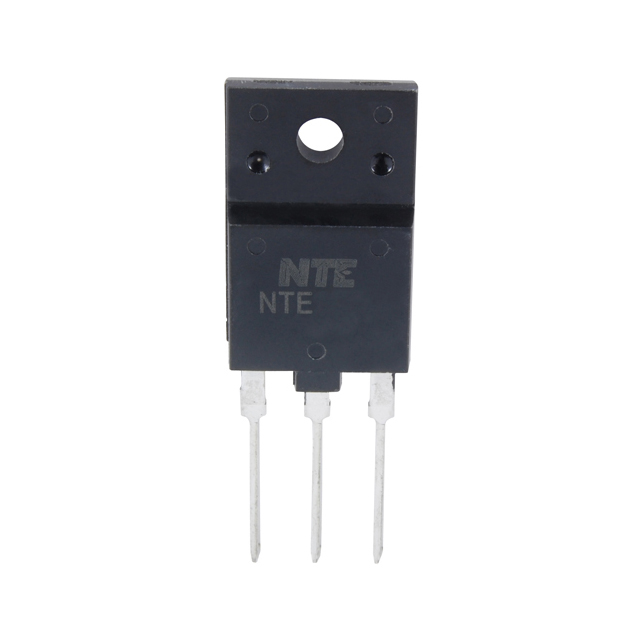

NTE2680
ActiveNTE Electronics, Inc
TRANS NPN 800V 8A TO3PIS
NTE2680
ActiveNTE Electronics, Inc
TRANS NPN 800V 8A TO3PIS
Description
General part information
NTE2680
Bipolar (BJT) Transistor NPN 800 V 8 A 45 W Through Hole TO-3P(H)IS
Technical Specifications
Parameters and characteristics for this part
| Specification | NTE2680 |
|---|---|
| Current - Collector (Ic) (Max) | 8 A |
| Current - Collector Cutoff (Max) | 1 mA |
| DC Current Gain (hFE) (Min) | 7 |
| Mounting Type | Through Hole |
| Operating Temperature | 150 °C |
| Package / Case | TO-3P-3 Full Pack |
| Package Name | TO-3P(H)IS |
| Power - Max | 45 W |
| Transistor Type | NPN |
| Vce Saturation (Max) | 3 V |
| Voltage - Collector Emitter Breakdown (Max) | 800 V |
