20020011-G021B01LF
ActiveAMPHENOL ANYTEK

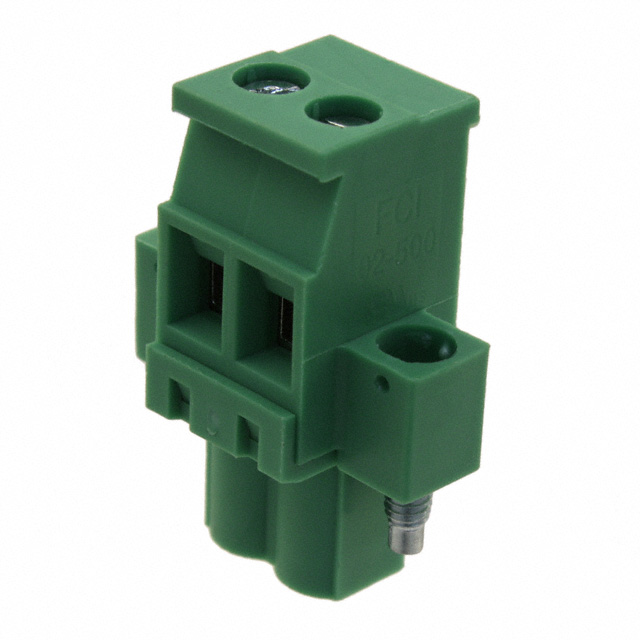

TERM BLOCK PLUG 2POS 270DEG 5MM
Deep-Dive with AI
Search across all available documentation for this part.
20020011-G021B01LF
ActiveAMPHENOL ANYTEK
TERM BLOCK PLUG 2POS 270DEG 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 20020011-G021B01LF | 20020011 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Current - UL | 12 A | 12 A |
| Features | Retention Latches (Non-Wire Side), Mating Flange | Retention Latches (Non-Wire Side), Mating Flange |
| Housing Material | Thermoplastic Resin | Thermoplastic Resin |
| Insulation Height | 1.024 " | 1.024 " |
| Insulation Height | 26.01 mm | 26.01 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 8 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 - 5.08 mm |
| Pitch [x] | 0.197 in | 0.197 - 0.2 in |
| Plug Wire Entry | 270 ° | 270 ° |
| Positions Per Level | 2 | 2 - 8 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.4 Nm | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In | 3.5 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² | 1 mm² |
| Wire Strip Length [Max] | 7 mm | 7 mm |
| Wire Strip Length [Min] | 6 mm | 6 mm |
20020011 Series
TERM BLOCK PLUG 8POS 270DEG 5MM
| Part | Material Flammability Rating | Positions Per Level | Mounting Type | Number of Positions | Contact Mating Finish | Wire Strip Length [Max] | Wire Strip Length [Min] | Housing Material | Plug Wire Entry | Contact Material | Number of Levels | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Screw Size | Current - UL | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Features | Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Type | Torque - Screw | Torque - Screw | Termination Style | Insulation Height | Insulation Height | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK 20020011-G081B01LF | UL94 V-0 | 8 | Free Hanging (In-Line) | 8 | Tin | 7 mm | 6 mm | Thermoplastic Resin | 270 ° | Copper Alloy | 1 | 2.5 mm² | 1 mm² | M3 | 12 A | 24 AWG | 12 AWG | Mating Flange, Retention Latches (Non-Wire Side) | Green | -40 °C | 115 °C | 5 mm | 0.197 in | Plug, Female Sockets | 0.4 Nm | 3.5 Lb-In | Screw - Rising Cage Clamp | 1.024 " | 26.01 mm | 300 V |
AMPHENOL ANYTEK 20020011-G031B01LF | UL94 V-0 | 3 | Free Hanging (In-Line) | Tin | 7 mm | 6 mm | Thermoplastic Resin | 270 ° | Copper Alloy | 1 | 2.5 mm² | 1 mm² | M3 | 12 A | 24 AWG | 12 AWG | Mating Flange, Retention Latches (Non-Wire Side) | Green | -40 °C | 115 °C | 5 mm | 0.197 in | Plug, Female Sockets | 0.4 Nm | 3.5 Lb-In | Screw - Rising Cage Clamp | 1.024 " | 26.01 mm | 300 V | |
AMPHENOL ANYTEK 20020011-G041B01LF | UL94 V-0 | 4 | Free Hanging (In-Line) | 4 | Tin | 7 mm | 6 mm | Thermoplastic Resin | 270 ° | Copper Alloy | 1 | 2.5 mm² | 1 mm² | M3 | 12 A | 24 AWG | 12 AWG | Mating Flange, Retention Latches (Non-Wire Side) | Green | -40 °C | 115 °C | 5 mm | 0.197 in | Plug, Female Sockets | 0.4 Nm | 3.5 Lb-In | Screw - Rising Cage Clamp | 1.024 " | 26.01 mm | 300 V |
AMPHENOL ANYTEK 20020011-H021B01LF | UL94 V-0 | 2 | Free Hanging (In-Line) | 2 | Tin | 7 mm | 6 mm | Thermoplastic Resin | 270 ° | Copper Alloy | 1 | 2.5 mm² | 1 mm² | M3 | 12 A | 24 AWG | 12 AWG | Mating Flange, Retention Latches (Non-Wire Side) | Green | -40 °C | 115 °C | 5.08 mm | 0.2 in | Plug, Female Sockets | 0.4 Nm | 3.5 Lb-In | Screw - Rising Cage Clamp | 1.024 " | 26.01 mm | 300 V |
AMPHENOL ANYTEK 20020011-G021B01LF | UL94 V-0 | 2 | Free Hanging (In-Line) | 2 | Tin | 7 mm | 6 mm | Thermoplastic Resin | 270 ° | Copper Alloy | 1 | 2.5 mm² | 1 mm² | M3 | 12 A | 24 AWG | 12 AWG | Mating Flange, Retention Latches (Non-Wire Side) | Green | -40 °C | 115 °C | 5 mm | 0.197 in | Plug, Female Sockets | 0.4 Nm | 3.5 Lb-In | Screw - Rising Cage Clamp | 1.024 " | 26.01 mm | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2560 | $ 0.47 | |
Description
General part information
20020011 Series
2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)
