EV-VN5E025AJ
ActiveVN5E025AJ EVALUATION BOARD
Deep-Dive with AI
Search across all available documentation for this part.
EV-VN5E025AJ
ActiveVN5E025AJ EVALUATION BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EV-VN5E025AJ | VN5E025 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Current - Output (Max) | - | 43 A |
| Fault Protection | - | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | - | Auto Restart |
| Function | High Side Driver (Internal FET) | High Side Driver (Internal FET) |
| Input Type | - | Non-Inverting |
| Interface | - | On/Off |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | High Side |
| Output Type | - | N-Channel |
| Package / Case | - | PowerSSO-12 |
| Primary Attributes | 1-Channel (Single) | 1-Channel (Single) |
| Ratio - Input:Output | - | 1:1 |
| Rds On (Typ) | - | 25 mOhm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | PowerSSO-12™ |
| Switch Type | - | General Purpose |
| Type | Power Management | Power Management |
| Utilized IC / Part | VN5E025AJ | VN5E025AJ |
| Voltage - Load | - | 28 V |
| Voltage - Load | - | 4.5 V |
| Voltage - Supply (Vcc/Vdd) | - | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.97 | |
VN5E025 Series
VN5E025AJ Evaluation Board
| Part | Supplied Contents | Function | Utilized IC / Part | Primary Attributes | Contents | Type | Interface | Switch Type | Ratio - Input:Output [custom] | Output Type | Mounting Type | Current - Output (Max) [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Rds On (Typ) | Input Type | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Supplier Device Package | Package / Case | Voltage - Supply (Vcc/Vdd) | Features | Fault Protection | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics EV-VN5E025AJ | Board(s) | High Side Driver (Internal FET) | VN5E025AJ | 1-Channel (Single) | Board(s) | Power Management | |||||||||||||||||||
STMicroelectronics EV-VN5E025AJ | |||||||||||||||||||||||||
STMicroelectronics VN5E025MJ-E | On/Off | General Purpose | 1:1 | N-Channel | Surface Mount | 43 A | 28 V | 4.5 V | 25 mOhm | Non-Inverting | 150 °C | -40 °C | High Side | PowerSSO-12™ | PowerSSO-12 | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | 1 |
Description
General part information
VN5E025 Series

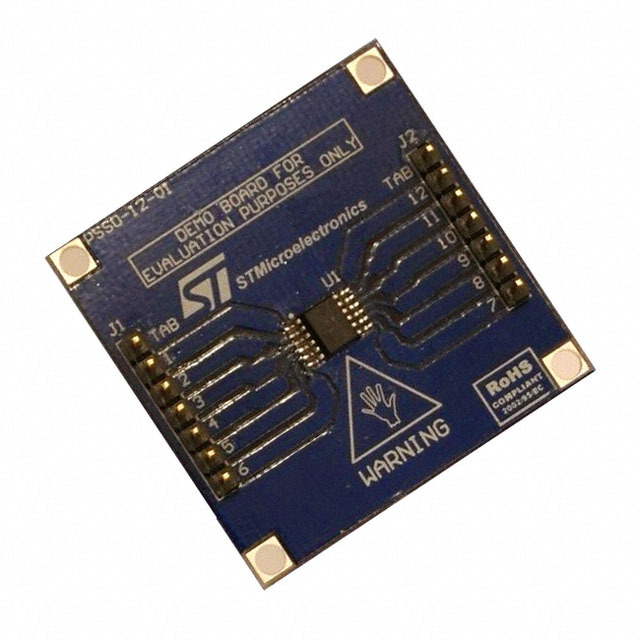

EV-VN5E025AJ provides you an easy way to connect ST’s surface mounted VIPower®drivers into your existing prototype circuitry. This evaluation board comes pre-assembled with VN5E025AJ-E high-side driver.
The VN5E025AJ-E is a single channel high-side driver manufactured using ST proprietary VIPower M0-5 technology and housed in PowerSSO-12 package. The VN5E025AJ-E is designed to drive 12 V automotive grounded loads, providing protection, diagnostics and easy 3 V and 5 V CMOS-compatible interface with any microcontroller.
The device integrates advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shutoff with autorestart and overvoltage active clamp. A dedicated analog current sense pin is associated with every output channel provides enhanced diagnostic functions including fast detection of overload and short-circuit to ground through power limitation indication, over temperature indication, short-circuit to VCCdiagnosis and ON-state and OFF-state open-load detection. The current sensing and diagnostic feedback of the whole device can be disabled by pulling the CS_DIS pin high to share the external sense resistor with similar devices.
