V-MD3_M12-EVAL-RFB-00A

Active

RFbeam Microwave GmbH

EVAL BOARD FOR V-MD3

Search across all available documentation for this part.

Active

RFbeam Microwave GmbH

EVAL BOARD FOR V-MD3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	V-MD3_M12-EVAL-RFB-00A	V-MD3 Series

Antenna Type	-	Integrated, Ceramic Patch

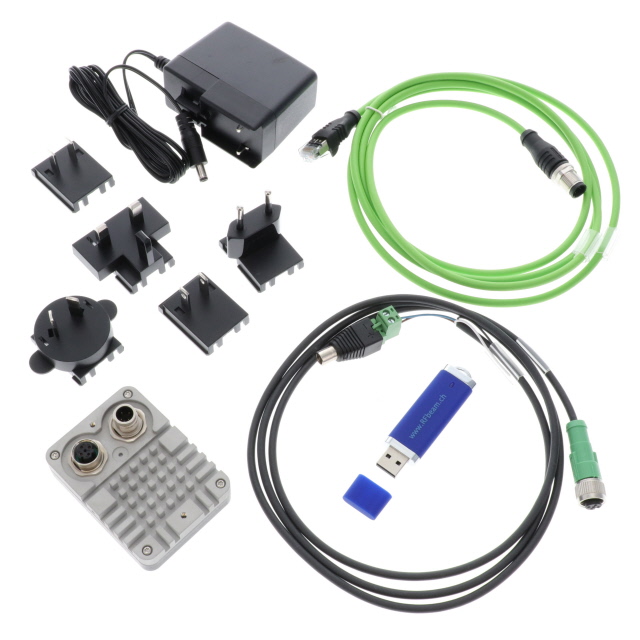

Contents	Power Supply, Cable(s), Accessories, Board(s)	Power Supply, Cable(s), Accessories, Board(s)
Current - Receiving	-	300 mA
Current - Transmitting	-	300 mA
Data Rate	-	100 Mbps
Embedded	True	True
Frequency	-	64 GHz
Frequency	-	60 GHz
Modulation	-	FMCW
Mounting Type	-	Chassis Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Package / Case	-	Module
Power - Output	-	15 dBm
Protocol	-	UDP, TCP/IP
RF Family/Standard	-	Radar
Sensing Range	80 m	80 m
Sensitivity	60 GHz	60 GHz
Sensor Type	Radar	Radar
Serial Interfaces	-	100BASE-T, GPO
Utilized IC / Part	V-MD3	V-MD3
Voltage - Supply [Max]	32 VDC	32 VDC
Voltage - Supply [Min]	8 V	8 V

EVAL BOARD FOR V-MD3

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Range	Embedded	Contents	Utilized IC / Part	Sensitivity	Sensor Type	Antenna Type	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Modulation	Frequency [Max]	Frequency [Min]	Power - Output	Current - Receiving	Current - Transmitting	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
RFbeam Microwave GmbH V-MD3_M12-EVAL-RFB-00A	32 VDC	8 V	80 m		Accessories, Board(s), Cable(s), Power Supply	V-MD3	60 GHz	Radar
RFbeam Microwave GmbH V-MD3_M12-RFB-00A-01	32 VDC	8 V							Integrated, Ceramic Patch	100BASE-T, GPO	TCP/IP, UDP	Radar	Module	FMCW	64 GHz	60 GHz	15 dBm	300 mA	300 mA	100 Mbps	85 °C	-20 C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 1303.00

General part information

V-MD3 - Radar Sensor Evaluation Board

Technical documentation and resources
