B82500C0000A010
ObsoleteEPCOS - TDK Electronics
FIXED IND 120UH 2A 150 MOHM TH
B82500C0000A010
ObsoleteEPCOS - TDK Electronics
FIXED IND 120UH 2A 150 MOHM TH
Description
General part information
B82500C0000A010

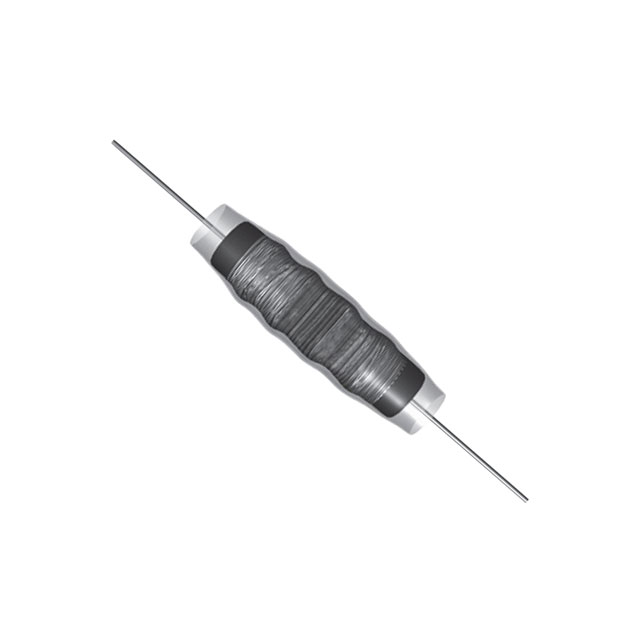

120 µH Unshielded Drum Core, Wirewound Inductor 2 A 150mOhm Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82500C0000A010 |
|---|---|
| Current Rating | 2 A |
| DC Resistance (DCR) | 150 mOhm |
| Frequency - Self Resonant | 5.8 MHz |
| Inductance | 120 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 1.26 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
