Description
General part information

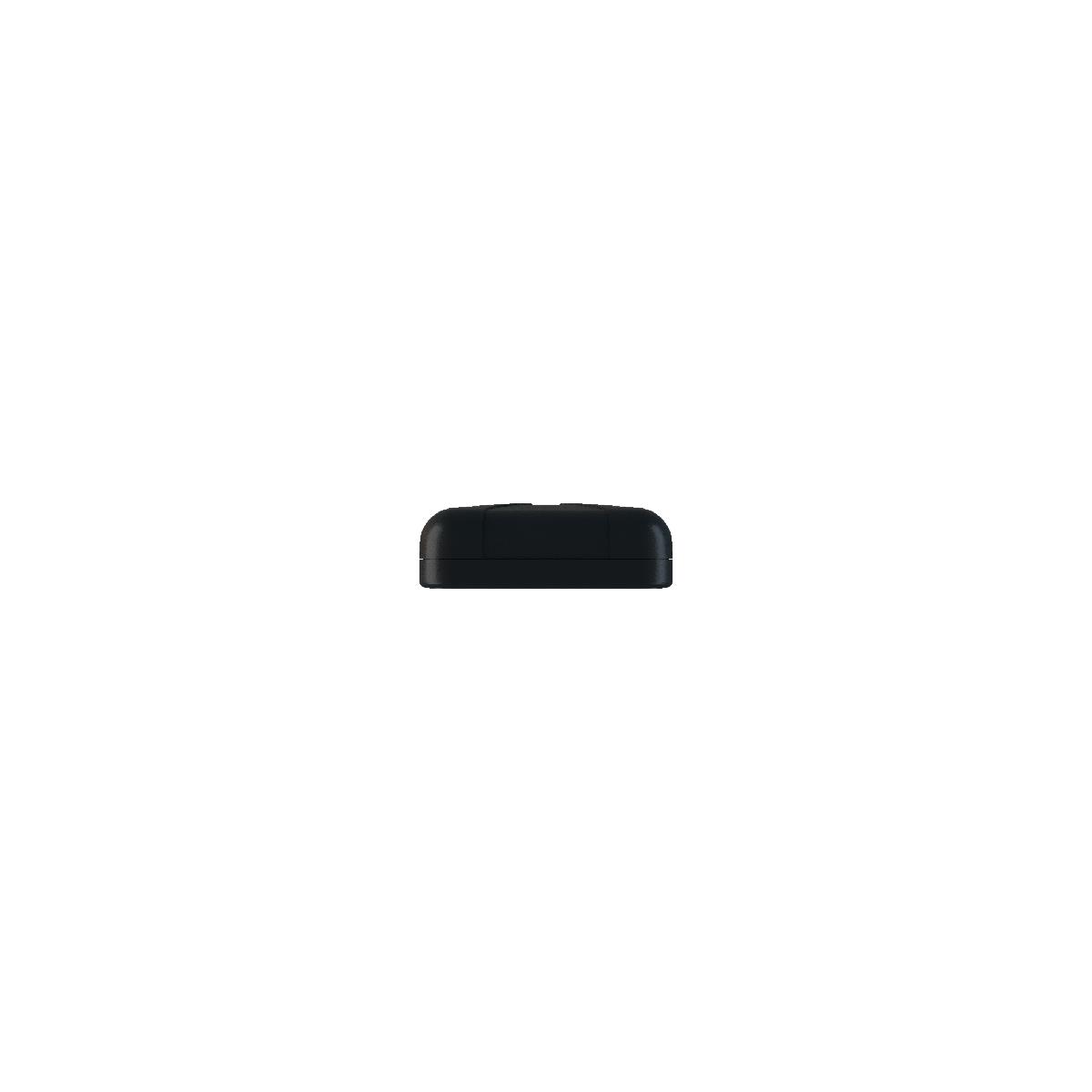

M1593CWT/100-00191-01
723MHz, 1.549GHz, 1.582GHz GLONASS, GPS Module RF Antenna 197MHz ~ 1.249GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz 2.6dBi, 1.5dBi, 3.3dBi MCX, SMA, SMB Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | M1593CWT/100-00191-01 |
|---|---|
| Antenna Type | Module |
| Applications | GPS, GLONASS |
| Frequency (Center/Band) | 723MHz, 1.582GHz, 1.549GHz |
| Frequency (Center/Band) - 1 | 723 MHz |
| Frequency (Center/Band) - 2 | 1.549 GHz |
| Frequency (Center/Band) - 3 | 1.582 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 1.249 GHz |
| Frequency Range (Band 1) Minimum | 197 MHz |
| Frequency Range (Band 2) Maximum | 1.559 GHz |
| Frequency Range (Band 2) Minimum | 1.539 GHz |
| Frequency Range (Band 3) Maximum | 1.606 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Gain | 3.3 dBi, 2.6 dBi, 1.5 dBi |
| Height (Max) | 0.906 in |
| Mounting Type | Magnetic |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | SMA, SMB, MCX |
